1. Material: ABS, PA66 plastic, copper, etc.
2. Voltage: 32V
3. Current: 100A
4. Working temperature: -30~+60 degrees Celsius

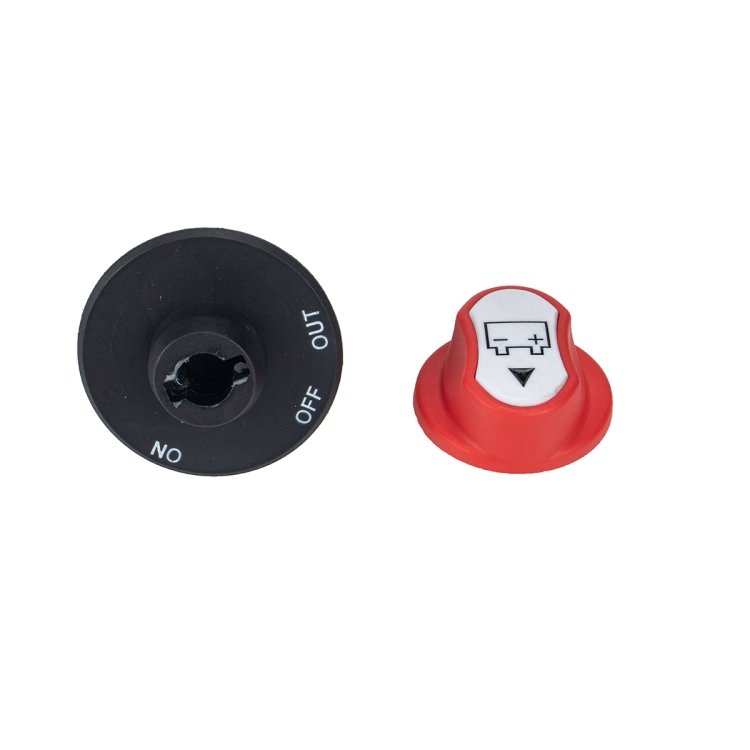

5. Switch function: ON-OFF (-OUT) [Note: the switch cover can be removed in the OUT position)
6. Wiring pin diameter: 6mm

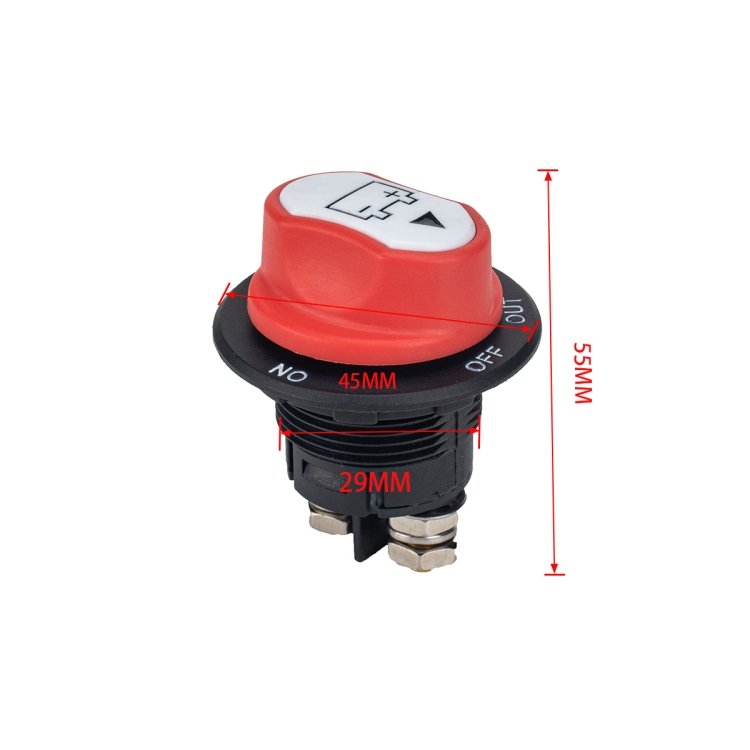

7. Installation aperture: 29mm
8. Suitable for installation panel thickness: 11mm(max)
9. Scope of application: motorbikes, automobiles, ships, etc. for power failure less than 100A 32V
Specification:
| Package Weight |
| One Package Weight |
0.09kgs / 0.19lb |
| One Package Size |
8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch |
| Carton Weight |
19.50kgs / 42.99lb |
| Carton Size |
42cm * 42cm * 38cm / 16.54inch * 16.54inch * 14.96inch |
| Loading Container |
20GP: 397 cartons * 200 pcs = 79400 pcs
40HQ: 923 cartons * 200 pcs = 184600 pcs |
|
