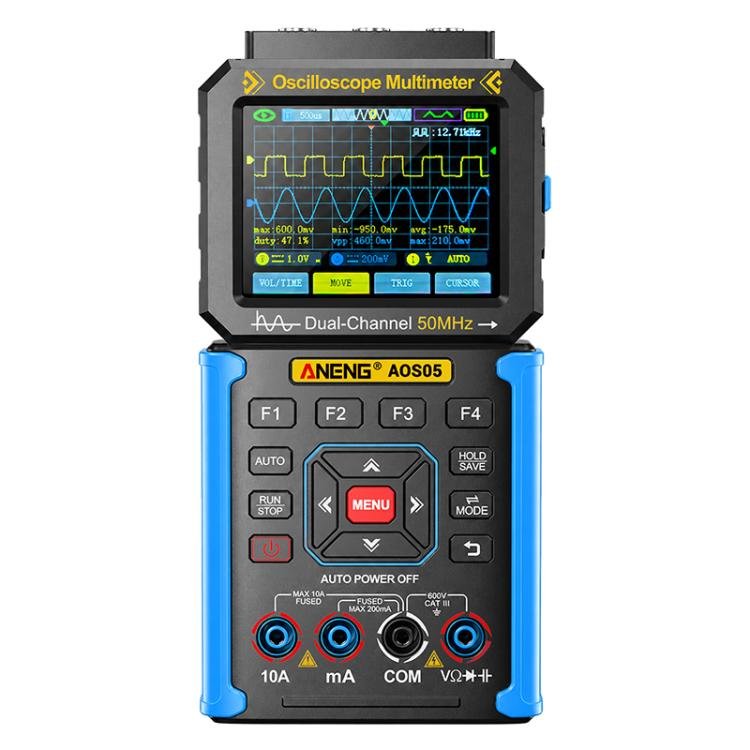

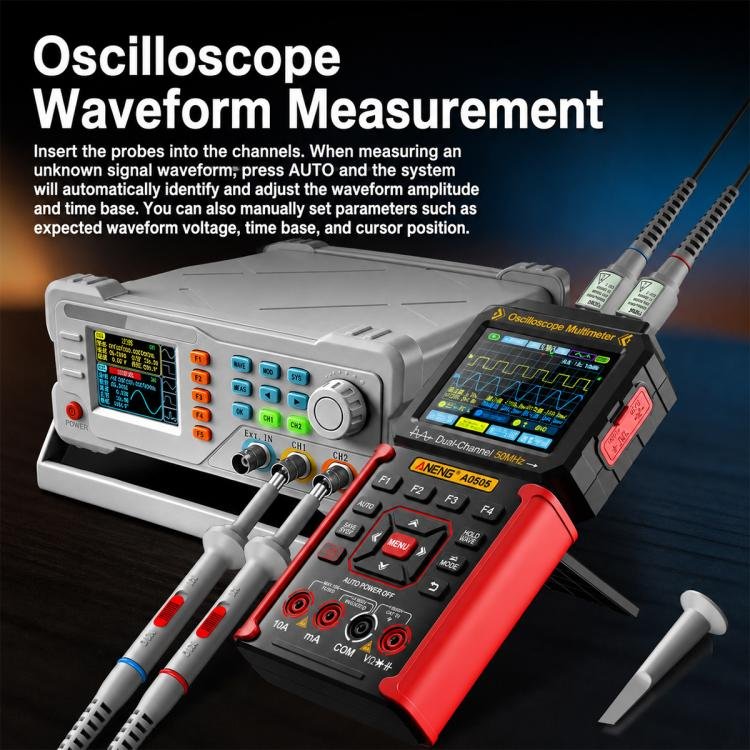

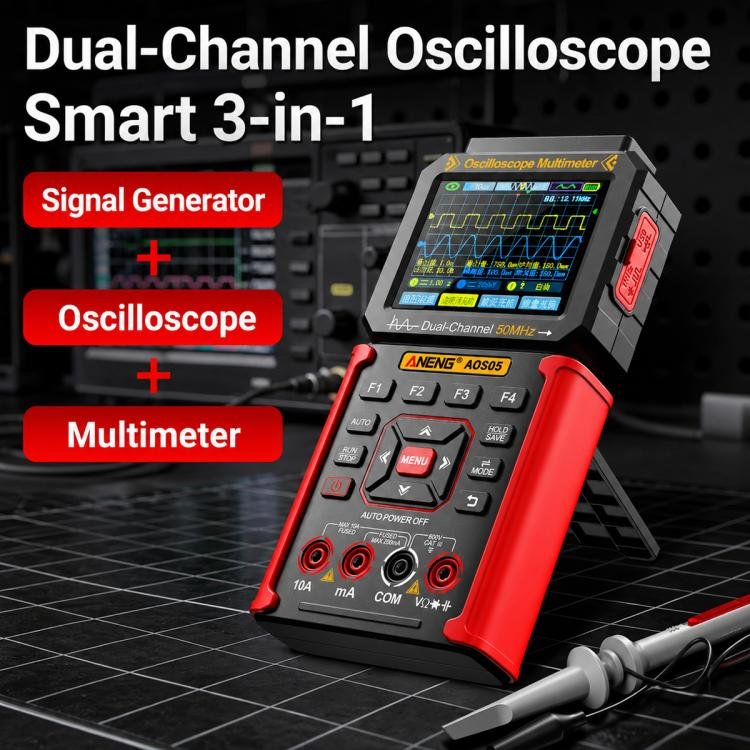

1. 3-in-1 portable handheld device integrating Dual-Channel 50MHz Oscilloscope + Digital Multimeter + Signal Generator, realizing waveform observation, electrical parameter measurement and signal output with one unit.

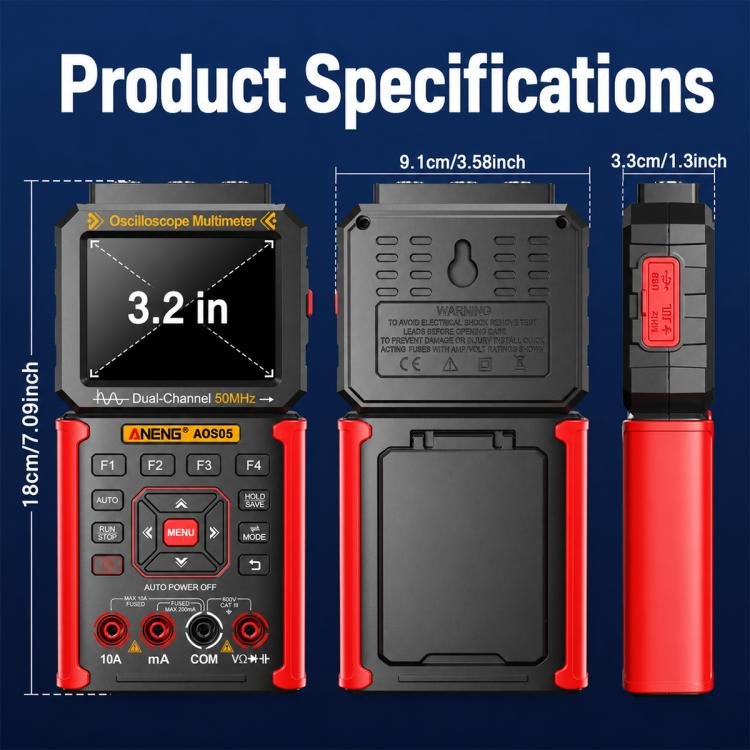

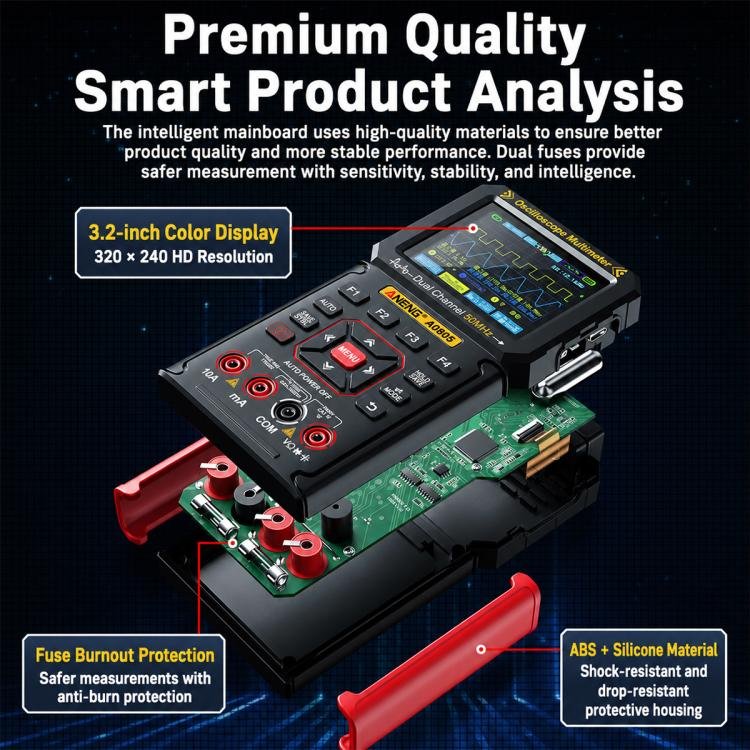

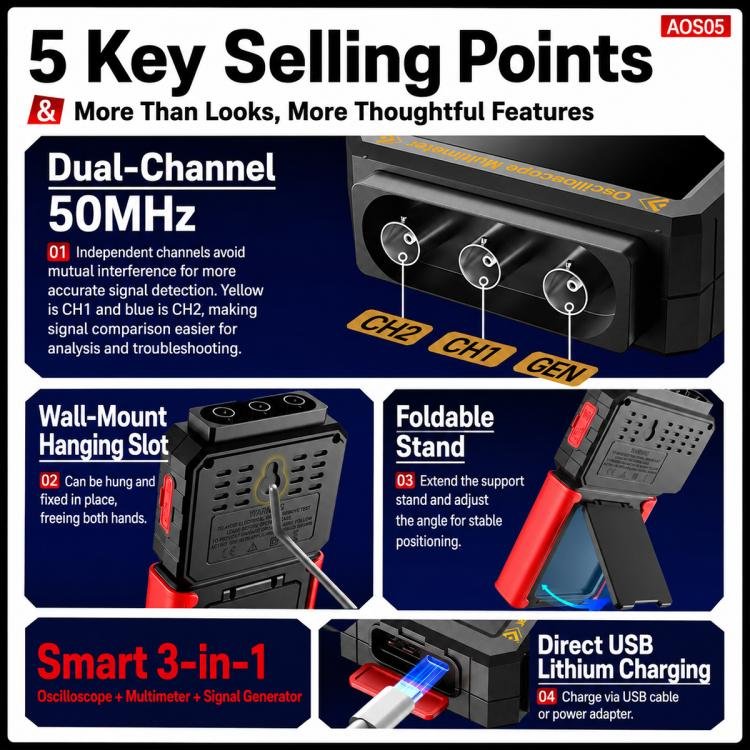

2. Two independent input channels for simultaneous waveform capture and comparison analysis. Equipped with a 3.2-inch 320×240 HD color screen, built-in foldable stand and wall hanging slot for flexible placement.

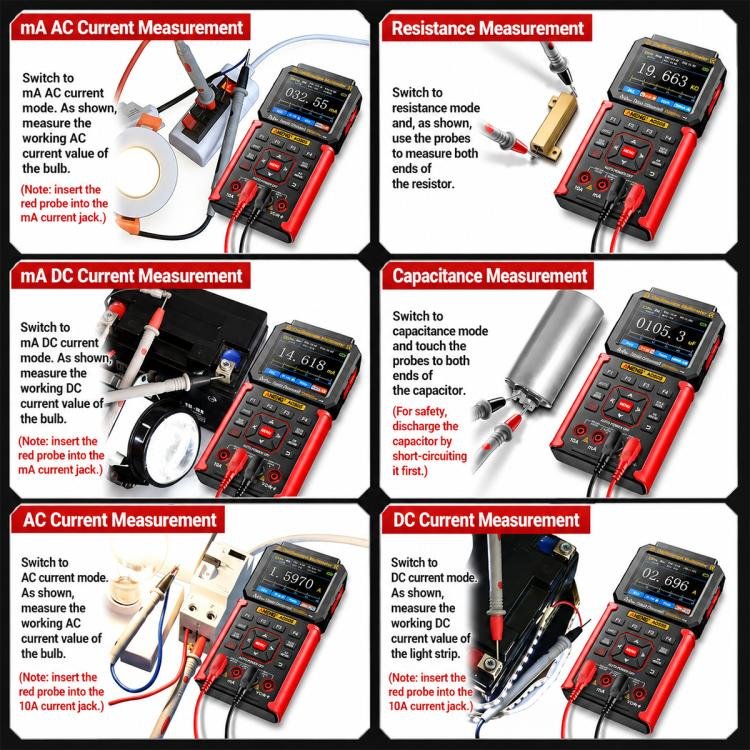

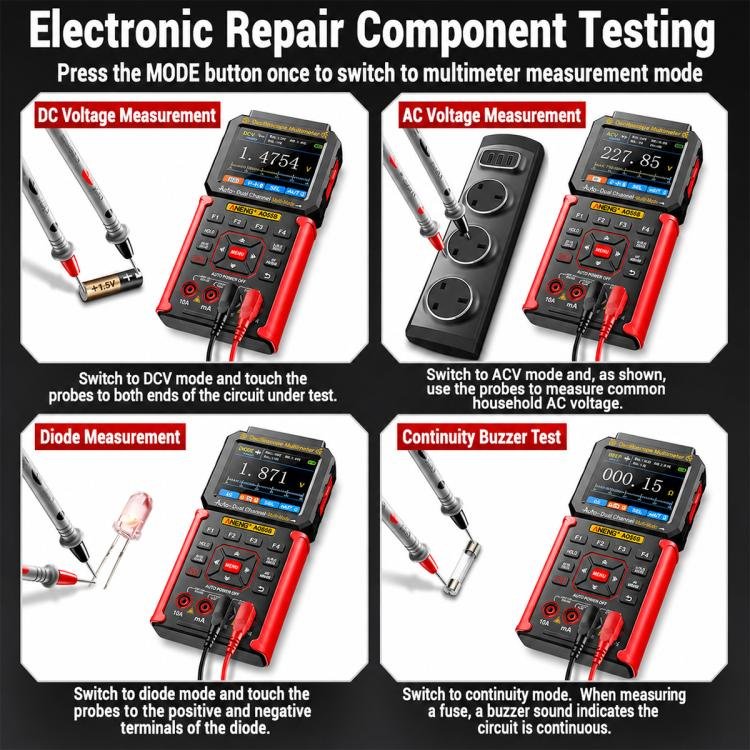

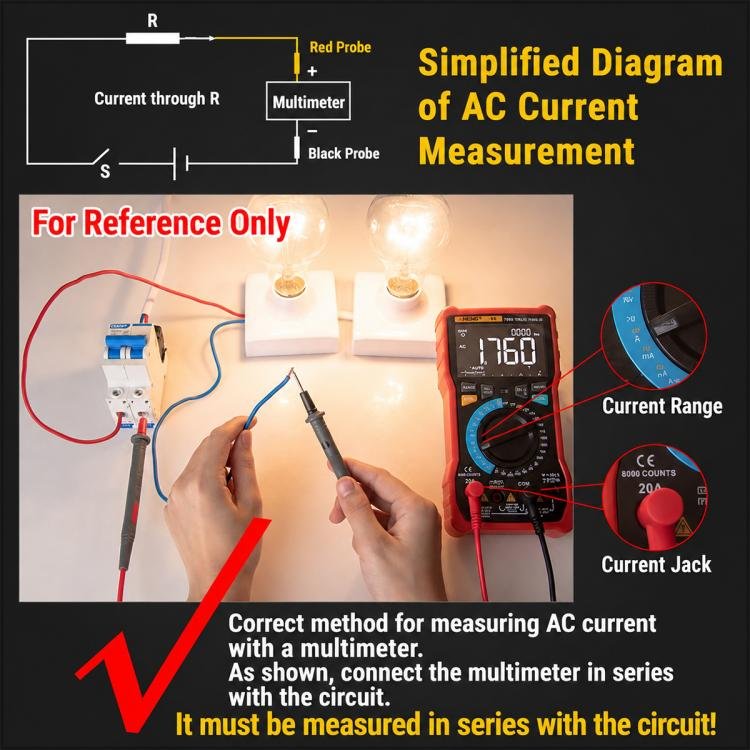

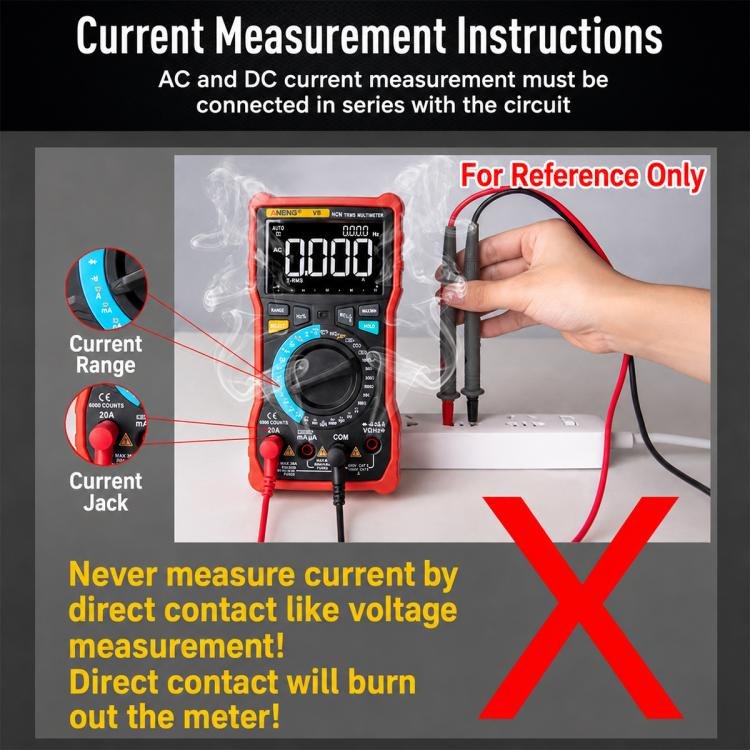

3. The multimeter features 25000-count high precision, measuring AC/DC voltage & current, resistance, capacitance, diode and continuity test, with fuse overcurrent burnout protection.

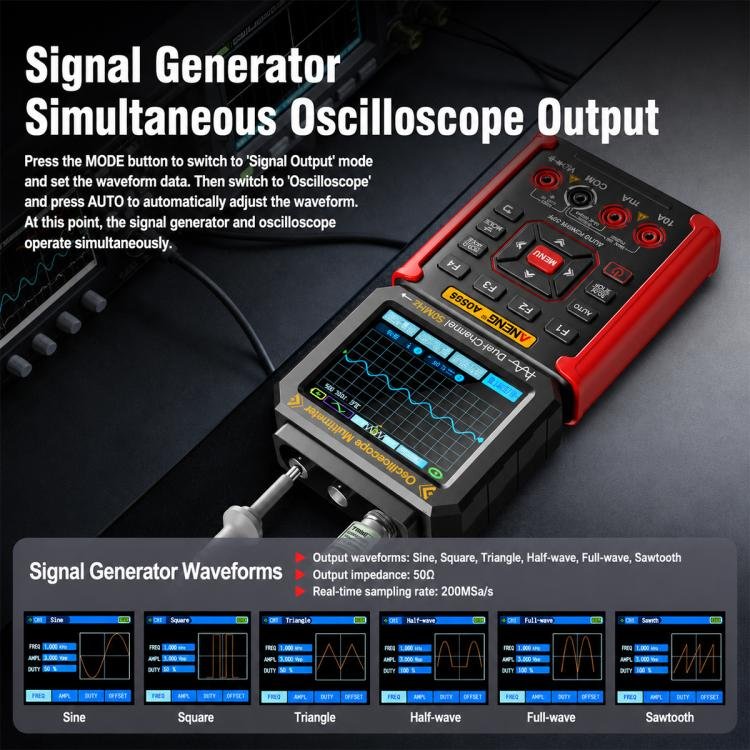

4. The signal generator outputs sine, square, triangle, half-wave, full-wave, sawtooth and other waveforms. It supports synchronous operation with the oscilloscope for convenient circuit debugging.

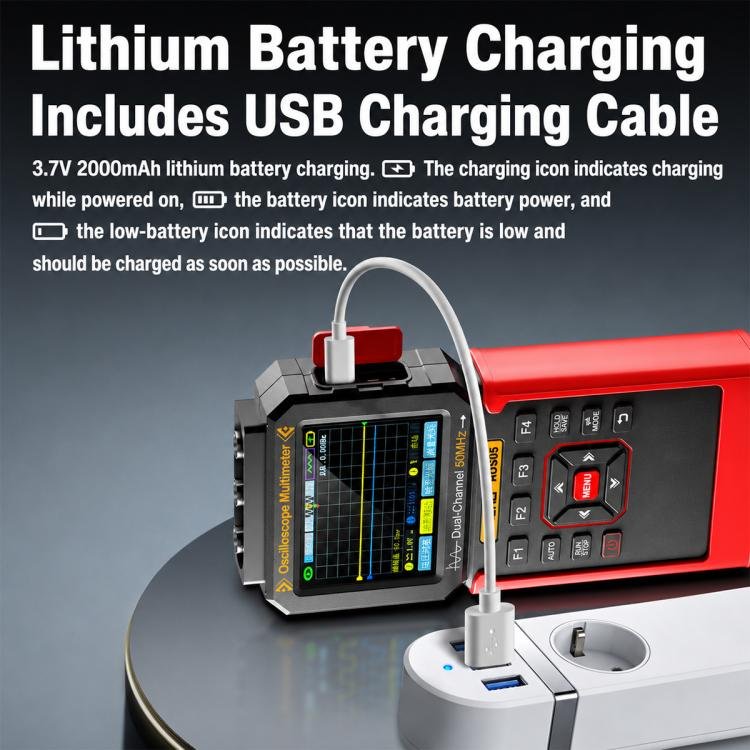

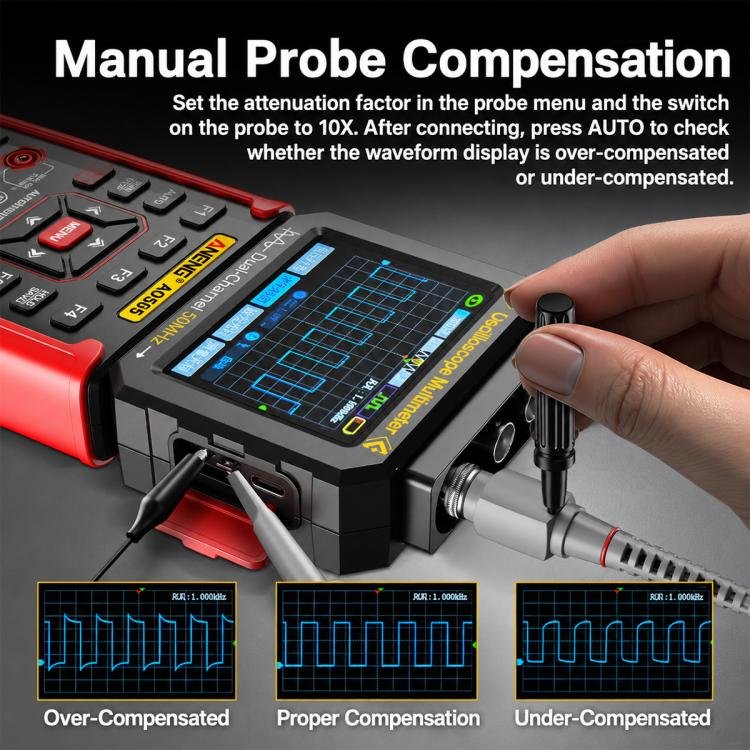

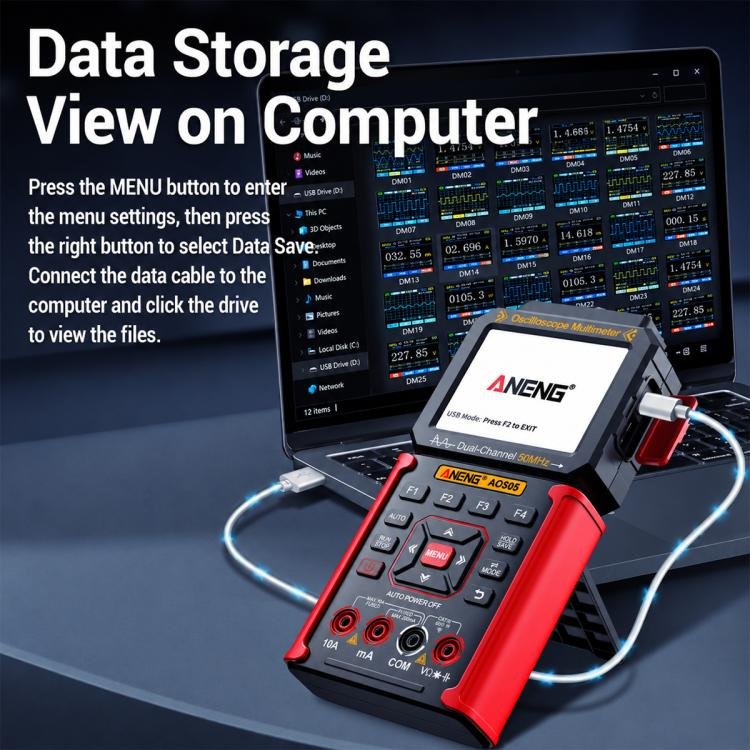

5. Built-in rechargeable lithium battery via USB-C charging. Shockproof drop-resistant ABS housing; probe manual compensation calibration is available. Waveform data can be saved and uploaded to PC for viewing and export, ideal for appliance repair, electronic DIY and laboratory teaching.
Specification:
| Package Weight |
| One Package Weight |
0.82kgs / 1.82lb |
| One Package Size |
23cm * 16cm * 9cm / 9.06inch * 6.3inch * 3.54inch |
| Carton Weight |
17.40kgs / 38.36lb |
| Carton Size |
47cm * 48cm * 34cm / 18.5inch * 18.9inch * 13.39inch |
| Loading Container |
20GP: 347 cartons * 20 pcs = 6940 pcs
40HQ: 807 cartons * 20 pcs = 16140 pcs |
|
