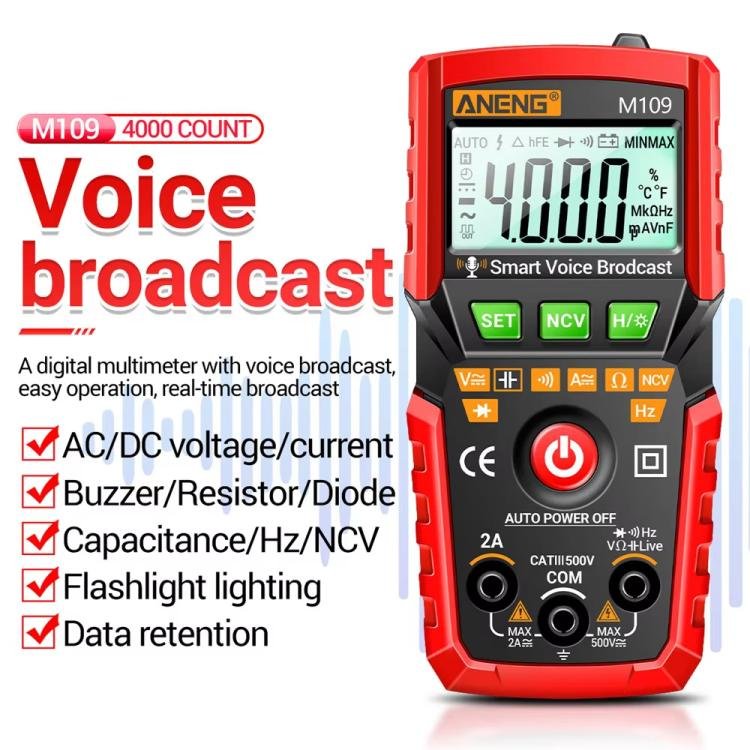

1. Main Functions:

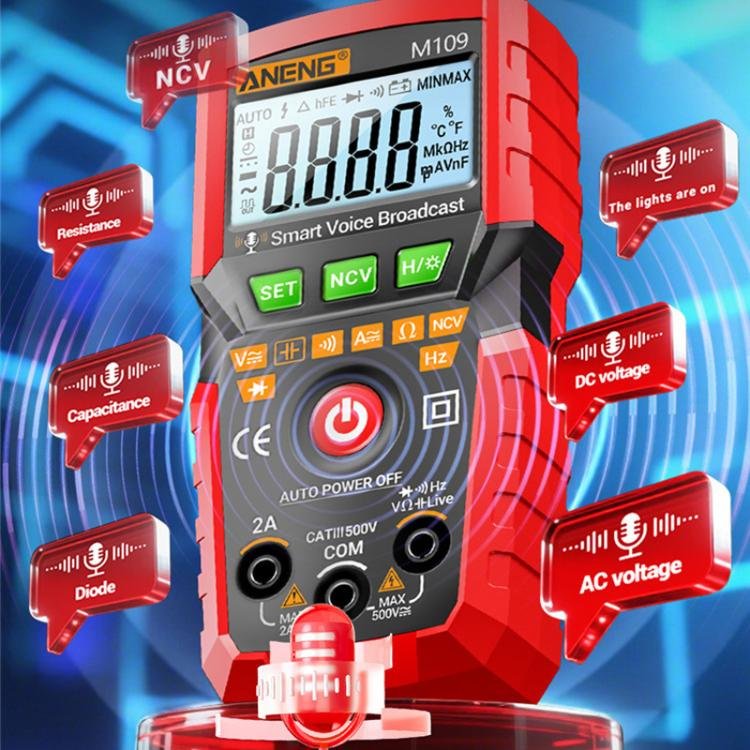

1. Real-time voice broadcast

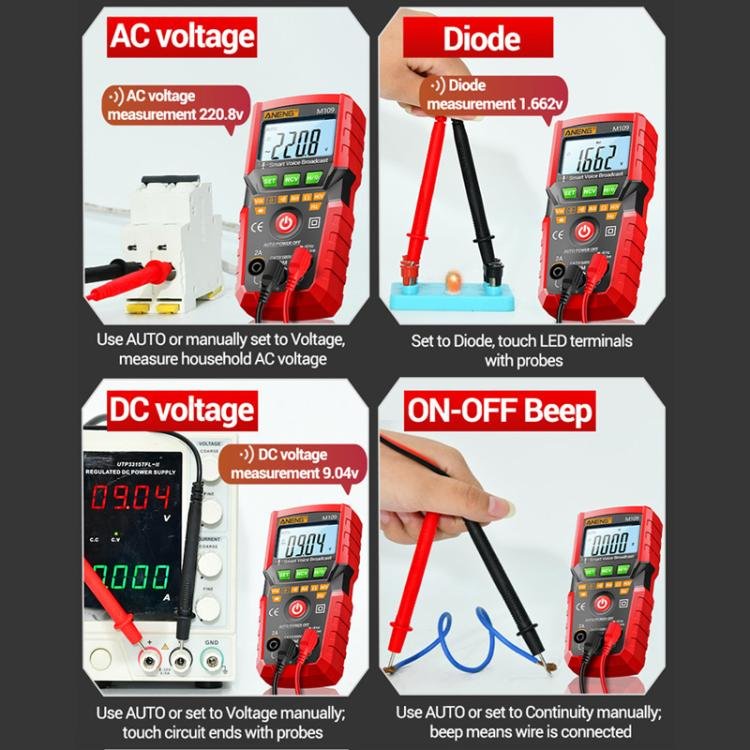

2. AC voltage measurement
3. Diode test
4. DC voltage measurement
5. Continuity buzzer test

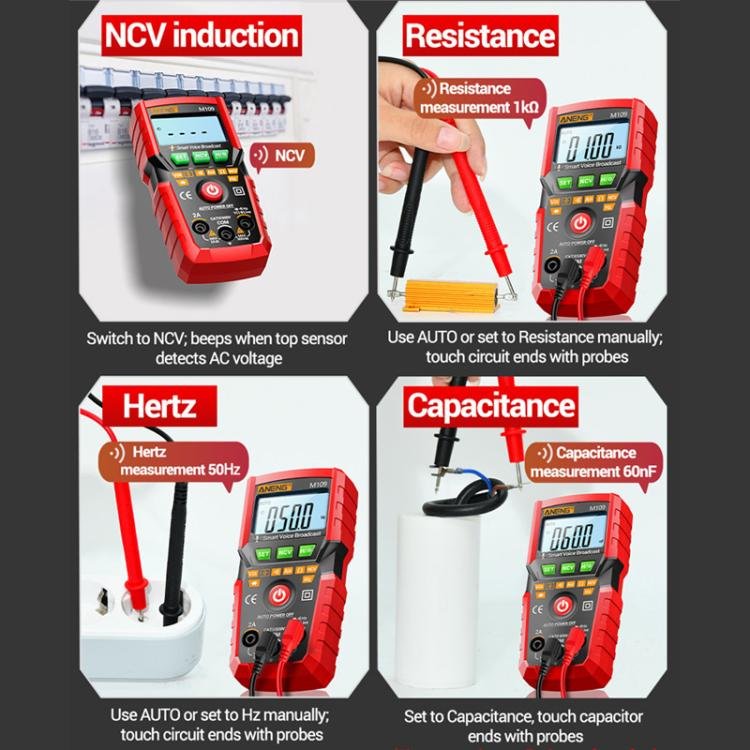

6. NCV voltage detection
7. Frequency (Hz) measurement
8. Capacitance measurement
9. Resistance measurement

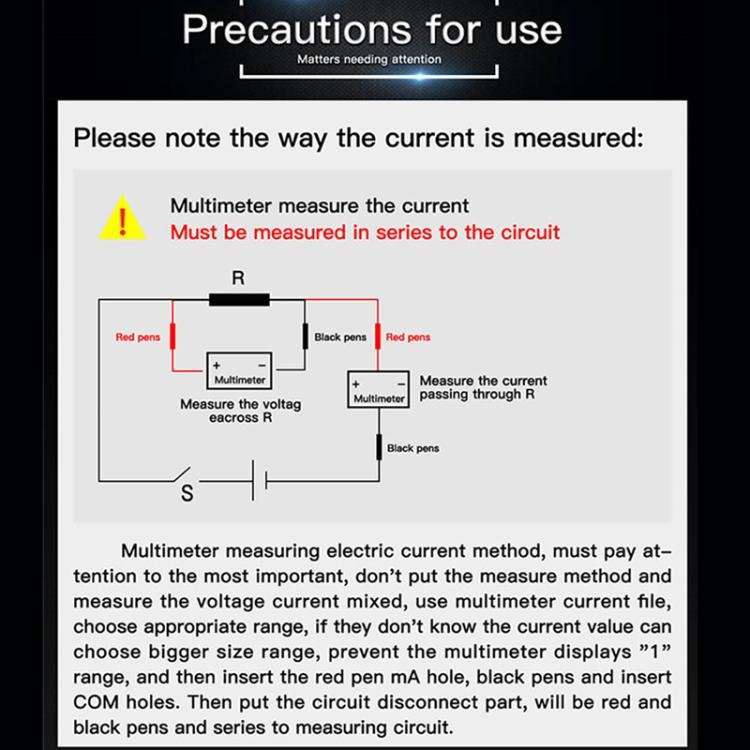

10. AC current measurement
11. DC current measurement

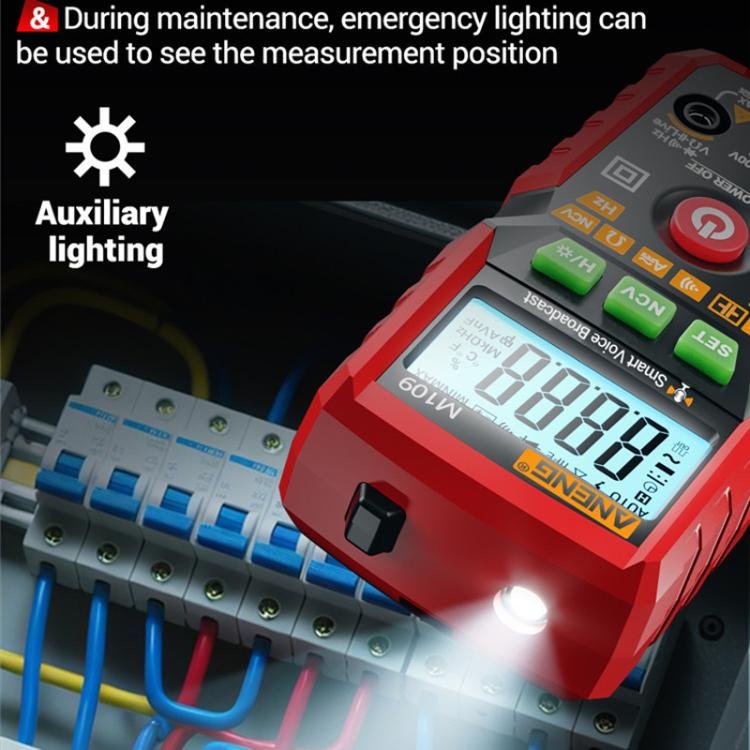

12. Flashlight illumination

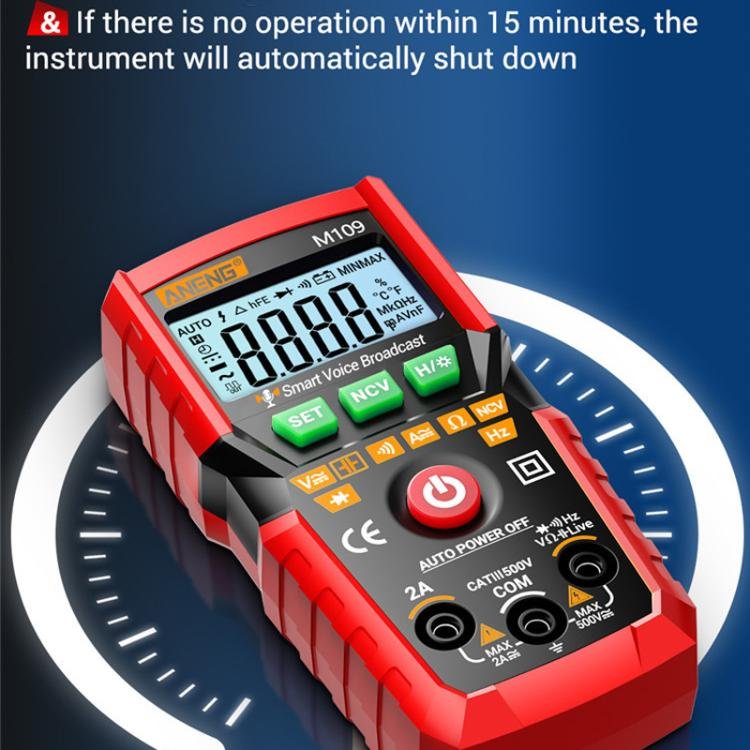

13. Auto power off after 15 minutes of inactivity
2. Maximum Counts: 4000 counts
3. LCD Backlight: Yes
4. Data Hold: Yes
5. Low Battery Indication: Yes
6. Battery: 2 x 1.5V AA battery (not included)
7. Weight: 118g

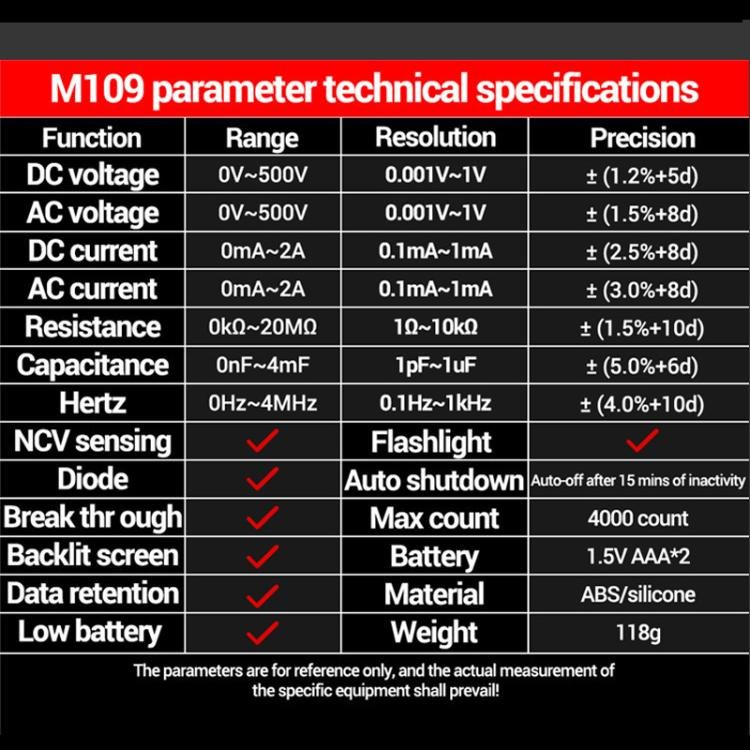

Technical Parameters: (Range/Resolution)
1. DC Voltage: 0V-500V / 0.001V-1V
2. AC Voltage: 0V-500V / 0.001V-1V
3. DC Current: 0mA-2A / 0.1mA-1mA
4. AC Current: 0mA-2A / 0.1mA-1mA
5. Resistance: 0Ω-20MΩ / 1Ω~10kΩ
6. Capacitance: 0nF~4mF / 1pF-1μF
7. Frequency (Hz): 0Hz-4MHz / 0.1Hz-1kHz
Specification:
| Package Weight |
| One Package Weight |
0.19kgs / 0.42lb |
| One Package Size |
18cm * 13cm * 6cm / 7.09inch * 5.12inch * 2.36inch |
| Carton Weight |
10.00kgs / 22.05lb |
| Carton Size |
60cm * 25cm * 36cm / 23.62inch * 9.84inch * 14.17inch |
| Loading Container |
20GP: 493 cartons * 50 pcs = 24650 pcs
40HQ: 1146 cartons * 50 pcs = 57300 pcs |
|
