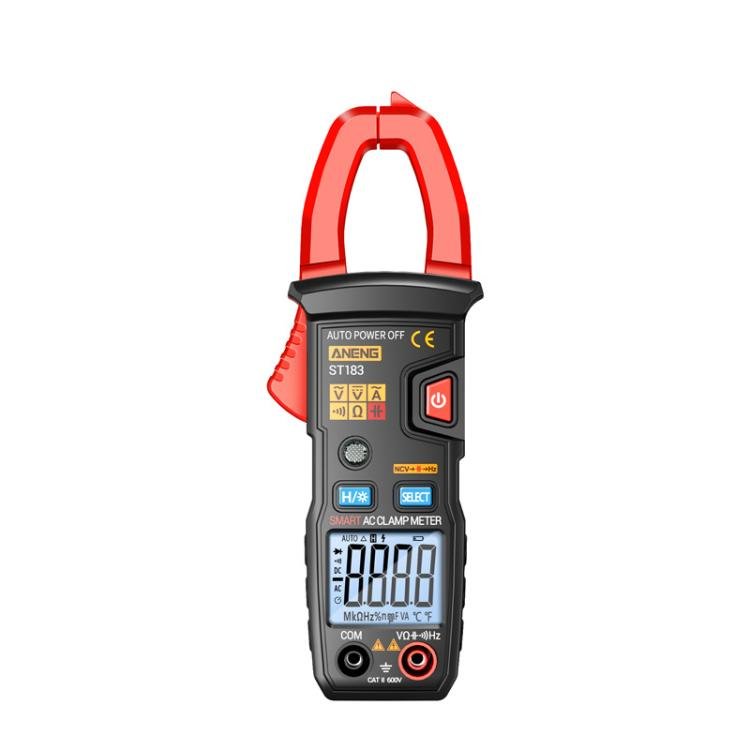

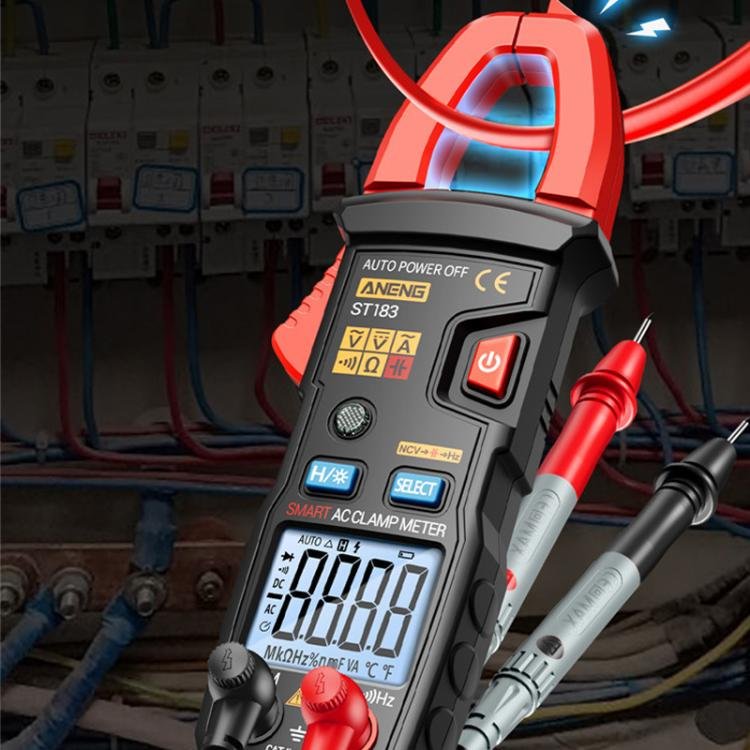

ANENG ST183 600A Digital Clamp Meter With NCV, 4000 Counts, Tests Continuity/Resistance/Capacitance/Diode, Audible & Visual Alarm
₹3,324.00

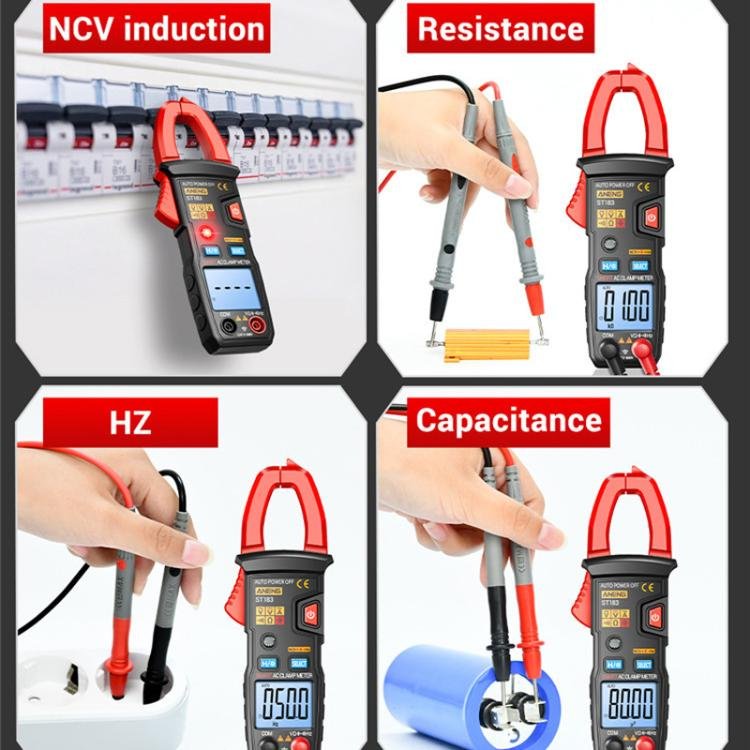

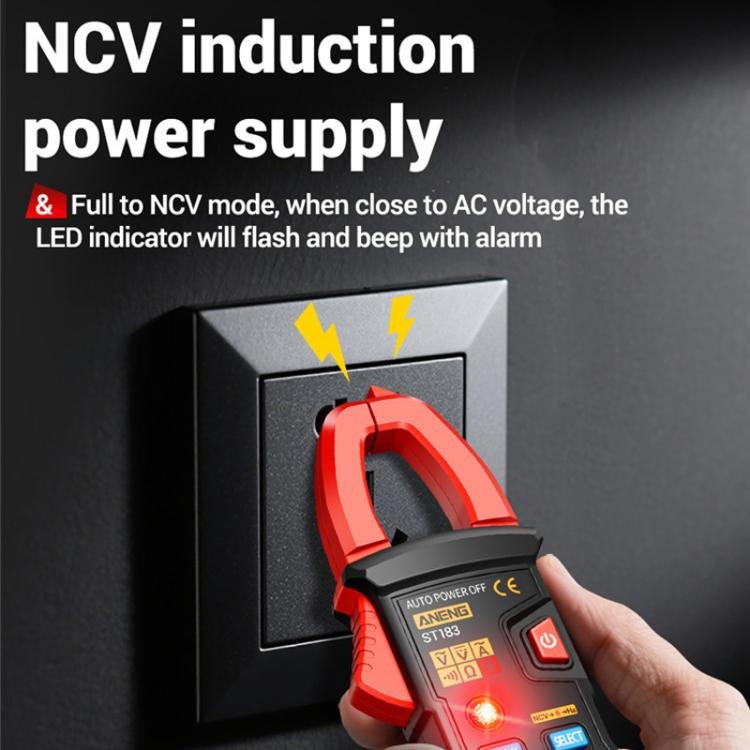

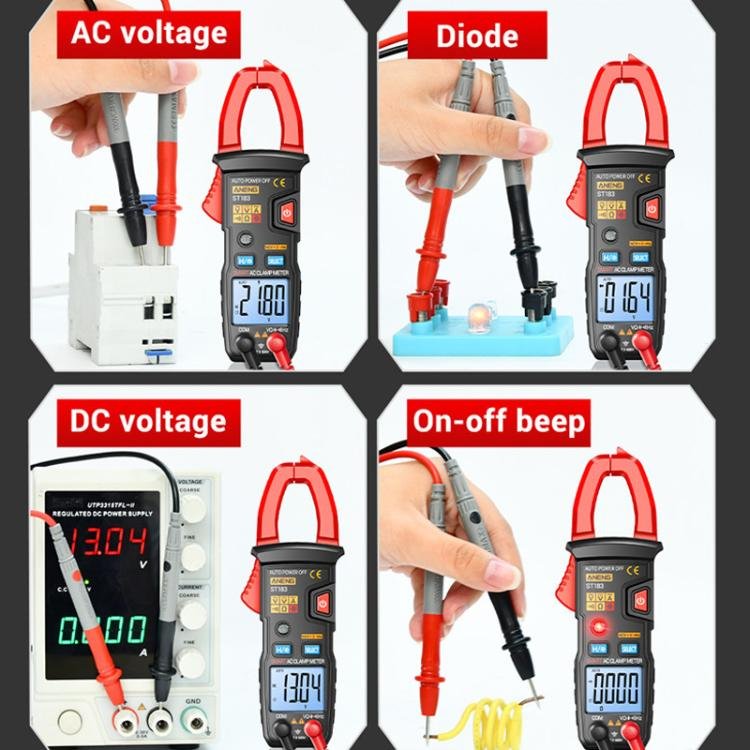

1. Main Functions: AC Voltage Measurement / Diode Test / DC Voltage Measurement / Continuity Buzzer / NCV Voltage Detection / Resistance Measurement / Hz Measurement / Capacitance Measurement / AC Current Measurement / Auto-Ranging / Screen Backlight / Audible and Visual Alarms / Auto Power Off / Data Hold / Low Battery Indication
2. Material: ABS
3. Weight: 122g
4. Power Supply: 1.5V AA Batteries (not included)
5. Maximum Count: 4000 counts

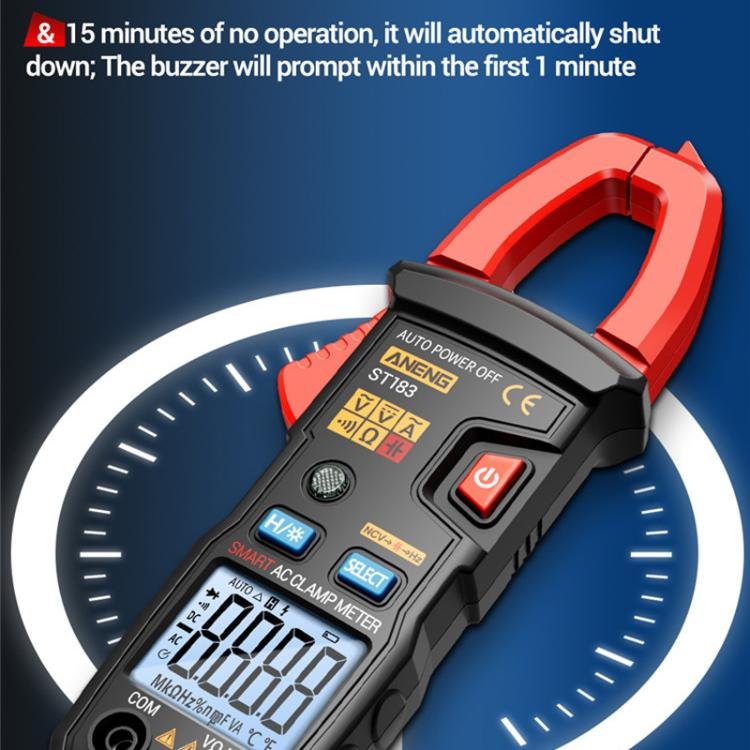

6. Auto Power Off: Automatically shuts down after 15 minutes of no operation

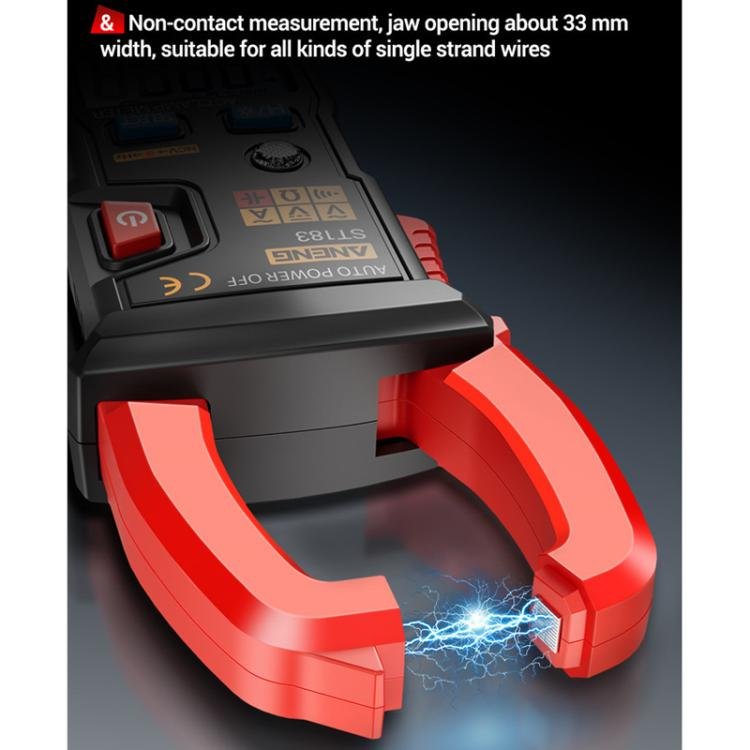

7. Clamp Jaw Opening: Approx. 33mm
Technical Specifications (Range/Resolution/Accuracy):
1. AC Voltage:
– Range: 0V–600V
– Resolution: 0.001V–1V
– Accuracy: ±(1.5% + 8 digits)
2. DC Voltage:
– Range: 0V–600V
– Resolution: 0.001V–1V
– Accuracy: ±(1.2% + 5 digits)

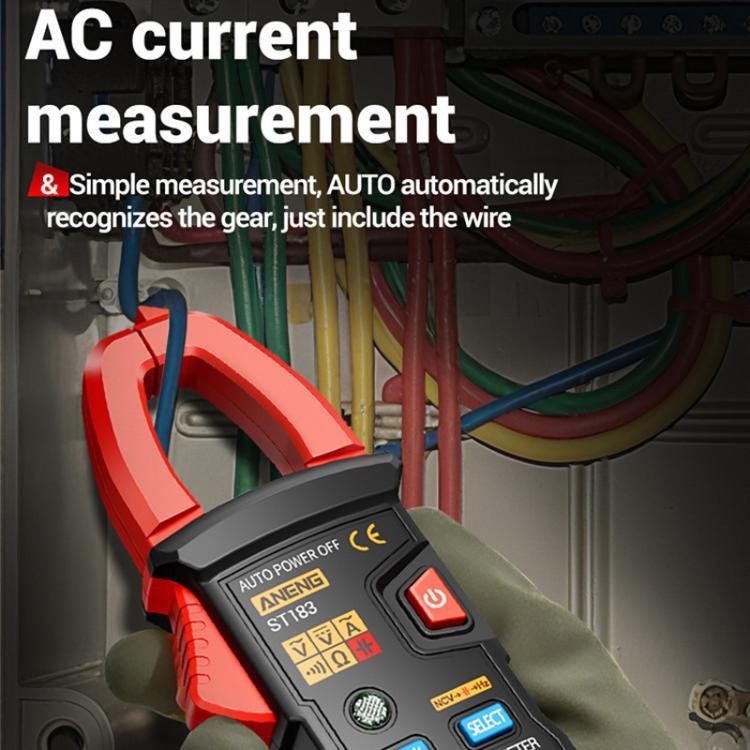

3. AC Current:
– Range: 0A–600A
– Resolution: 0.01A–1A
– Accuracy: ±(3.5% + 8 digits)
4. Resistance:
– Range: 0Ω–40.00MΩ
– Resolution: 0.1Ω–10kΩ
– Accuracy: ±(1.5% + 5 digits)
5. Frequency (Hz):
– Range: 0Hz–20MHz
– Resolution: 0.1Hz–10kHz
– Accuracy: ±(4.0% + 10 digits)
6. Capacitance:
– Range: 0nF–60.00mF
– Resolution: 1pF–10μF
– Accuracy: ±(10% + 8 digits)
| Package Weight |
|
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Option | Default |
