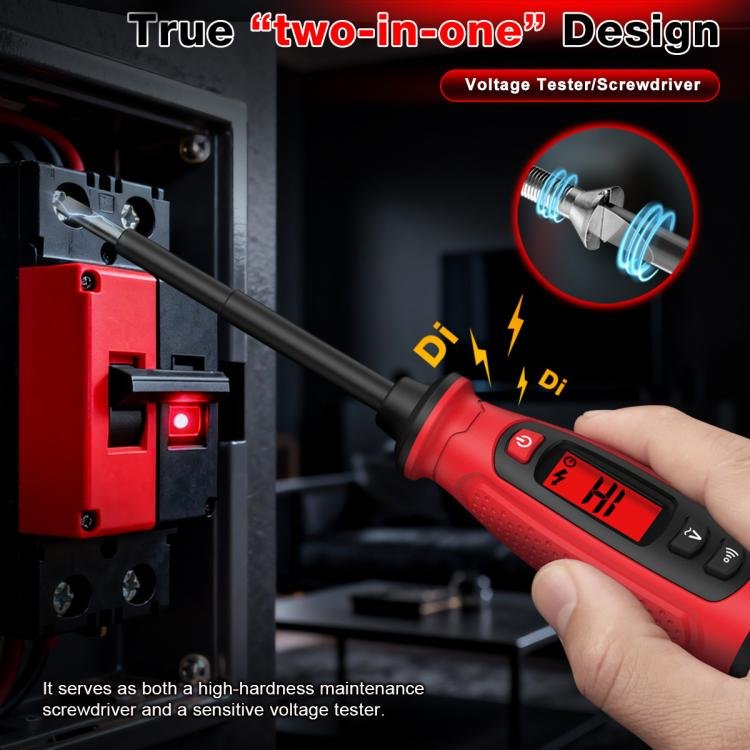

1. Combines a high-hardness alloy steel screwdriver (Lovan steel) with a sensitive digital AC voltage tester. Features a high-torque handle design that allows you to easily loosen or tighten terminal screws, circuit breakers, and outlets while performing electrical testing.

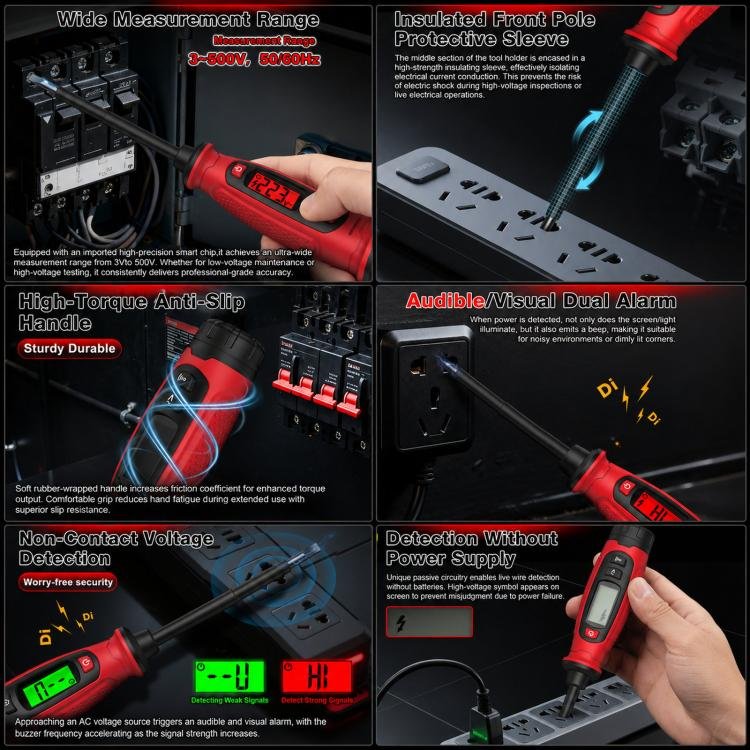

2. Built-in precision smart chip detects AC voltage from 3V up to 500V (50/60Hz). The high-definition LCD dual-color backlit screen displays clear voltage values and status icons, automatically switching backlights and sounding an audible beep during high-voltage detection.
3. Rapidly distinguishes between live and neutral wires based on detected voltage levels. Includes Non-Contact Voltage (NCV) induction mode to safely locate live conductors or break points through wire insulation without direct bare metal contact.
4. The probe shaft is coated with a high-strength protective insulation sleeve to prevent accidental short circuits during deep electrical box operations. Supports emergency live wire detection even when batteries are depleted, displaying a safety warning symbol.

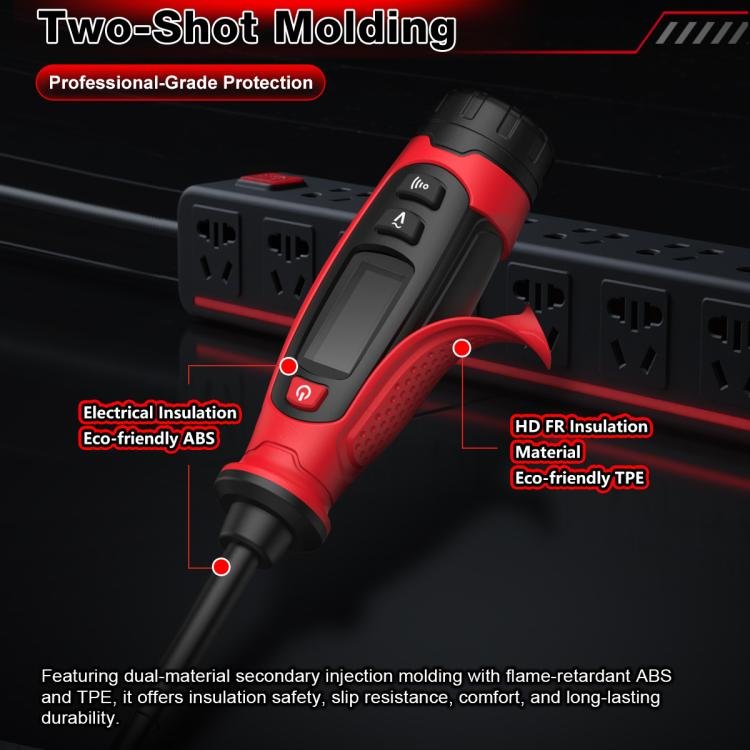

5. Crafted using eco-friendly flame-retardant ABS and TPE soft rubber secondary injection molding for maximum grip, insulation comfort, and impact resistance. Automatically powers down after 3 minutes of inactivity to conserve battery life.
Parameters:
1. Shell Material: Eco-friendly ABS + TPE dual-color injection molding
2. Probe Material: High-hardness alloy steel
3. AC Voltage Detection Range: 3V – 500V, 50/60Hz
4. Measurement Accuracy: 3V – 300V: +/-(5%+3); 300V – 500V: +/-(6%+5)
5. NCV Non-Contact Voltage Sensing: Safely detects AC voltage without contact with wire or live conductor
6. Live / Neutral Wire Identification: Accurately identifies live and neutral wires based on detected voltage level (Neutral wire voltage typically around 3 – 7V)
7. Data Hold: Automatically locks the display reading after releasing the button following AC voltage measurement for easy recording and viewing
8. No-Power Testing / Emergency Power-Off Sensing: Displays high-voltage warning icon on screen when touching live wire, even if battery is fully depleted
9. Battery Positive Pole Detection: Fast testing and identification of battery positive pole
10. Auto Power-Off: Automatically turns off after 3 minutes of inactivity to save power

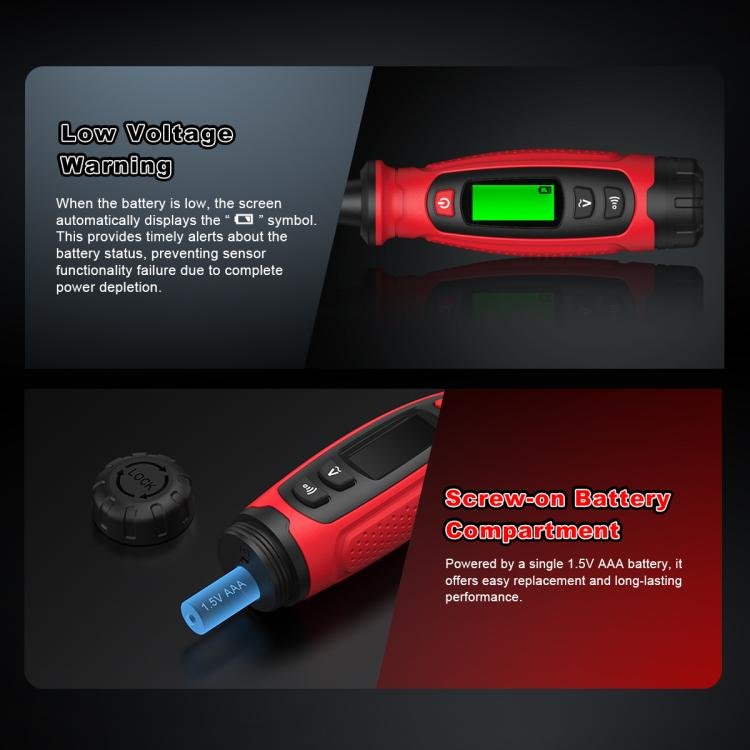

11. Low Battery Indicator: Low battery icon appears on display to prompt timely battery replacement
12. Display: HD LCD dual-color backlit display
13. Alarm Method: Red backlight + audio-visual buzzer alarm
14. Operating Temperature: 0 to 40 deg C
15. Storage Temperature: -10 to 50 deg C
16. Operating Humidity: Less than or equal to 95% RH
17. Operating Altitude: Less than or equal to 2000 meters
18. Product Net Weight: 89 g
19. Power Supply: 1x 1.5V AAA battery (Battery not included)
Specification:
| Package Weight |
| One Package Weight |
0.12kgs / 0.27lb |
| One Package Size |
24cm * 7cm * 6cm / 9.45inch * 2.76inch * 2.36inch |
| Carton Weight |
20.70kgs / 45.64lb |
| Carton Size |
47cm * 46cm * 31cm / 18.5inch * 18.11inch * 12.2inch |
| Loading Container |
20GP: 397 cartons * 160 pcs = 63520 pcs
40HQ: 923 cartons * 160 pcs = 147680 pcs |
|
