Features
1. With overload protection and mechanical protection functions.
2. Buzzer alarm, automatic shutdown, air conditioning temperature measurement.
3. Wide range of applications.
4. Functions: DC voltage/AC voltage/DC current/AC current/resistance/duty ratio/frequency measurement/diode and continuity test/battery voltage measurement/closing angle/speed/temperature measurement.

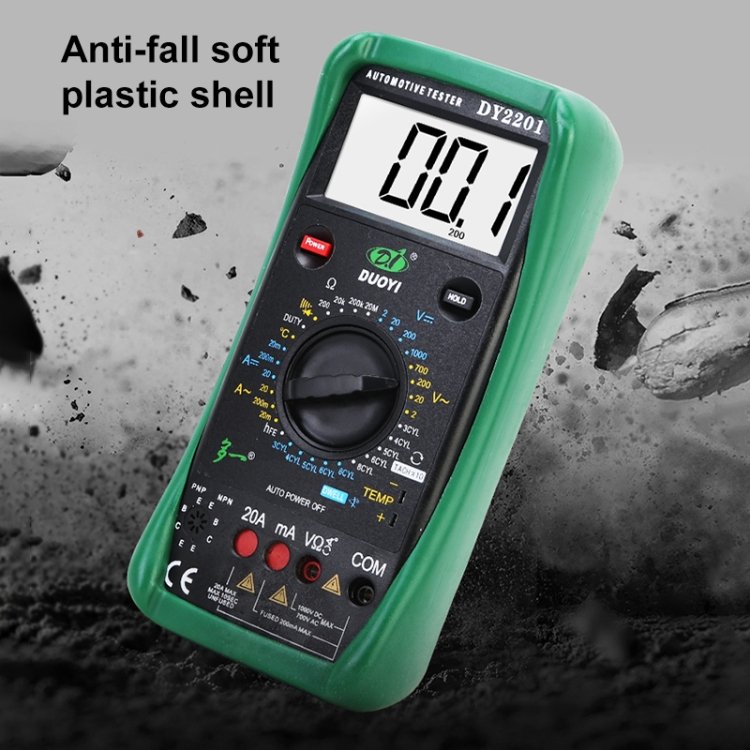

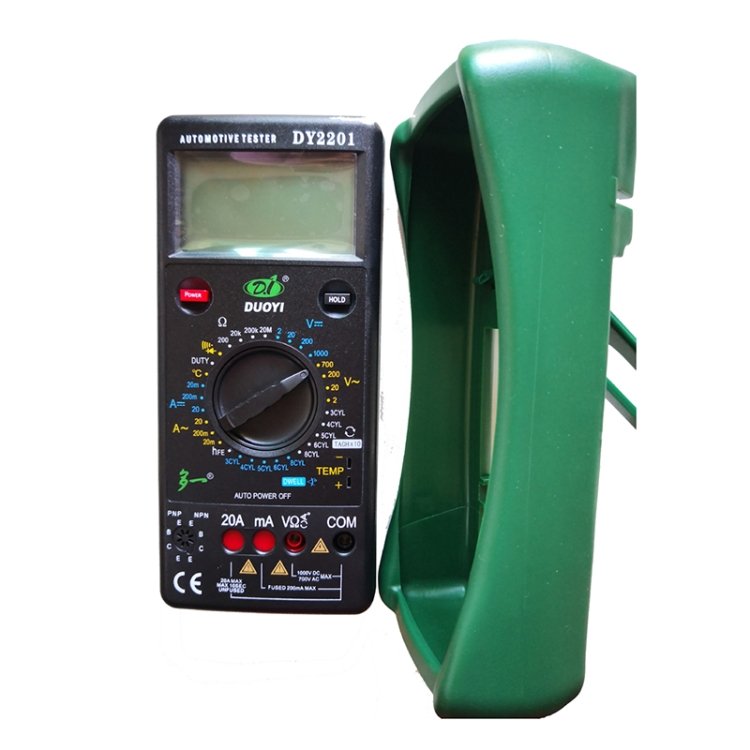

5. The high-precision soft plastic shell can better protect the body.
Specification
1. Duty cycle: 1-90%
2. Speed: 3/4/5/6/8CYL
3. Closing angle: 3/4/5/6/8CYL
4. Alternating current: 20mA/200mA/20A
5. DC current: 20mA/200mA/20A
6. DC voltage: 2/20/200/1000V
7. AC voltage: 2/20/200/700V
8. Temperature: -0~1000 degrees Celsius
9. Resistance: 200 ohm/20K ohm, 200K ohm/20M ohm
10. Voltage input impedance: 10M
11. Power supply mode: 9V dry battery (included)
Specification:
| Package Weight |
| One Package Weight |
0.36kgs / 0.80lb |
| One Package Size |
18cm * 14cm * 6cm / 7.09inch * 5.51inch * 2.36inch |
| Carton Weight |
12.15kgs / 26.79lb |
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 522 cartons * 30 pcs = 15660 pcs
40HQ: 1212 cartons * 30 pcs = 36360 pcs |
|
