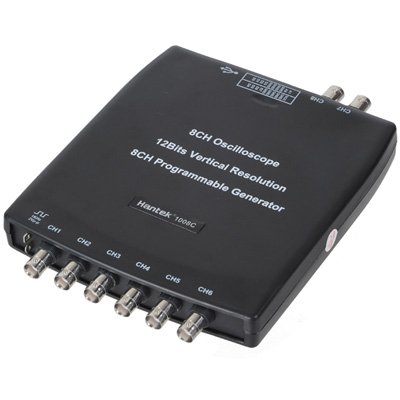

1. Description:
– Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
– Vehicle Testing
– First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
– Ignition: primary and secondary
– Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
– Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
– Performer: Petrol/Diesel
– Starter and charging circuits
2. Oscilloscope:
– 8 channels oscilloscope, 2.4MSa/s real time sampling rate
– 12 bits vertical resolution, spectrum analysis function
Programmable Generator
– 8 channels programmable generator
– Can analog signals of crankshaft, camshaft etc
3. Others:

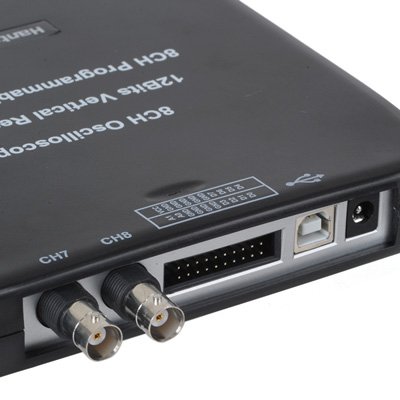

– USB 2.0 interface plug and play, and no need extra power supply
– More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use
Specification:
| Package Weight |
| One Package Weight |
1.10kgs / 2.43lb |
| One Package Size |
23.5cm * 17cm * 7.2cm / 9.25inch * 6.69inch * 2.83inch |
| Carton Weight |
16.70kgs / 36.82lb |
| Carton Size |
48cm * 35cm * 30cm / 18.9inch * 13.78inch * 11.81inch |
| Loading Container |
20GP: 529 cartons * 16 pcs = 8464 pcs
40HQ: 1228 cartons * 16 pcs = 19648 pcs |
|
