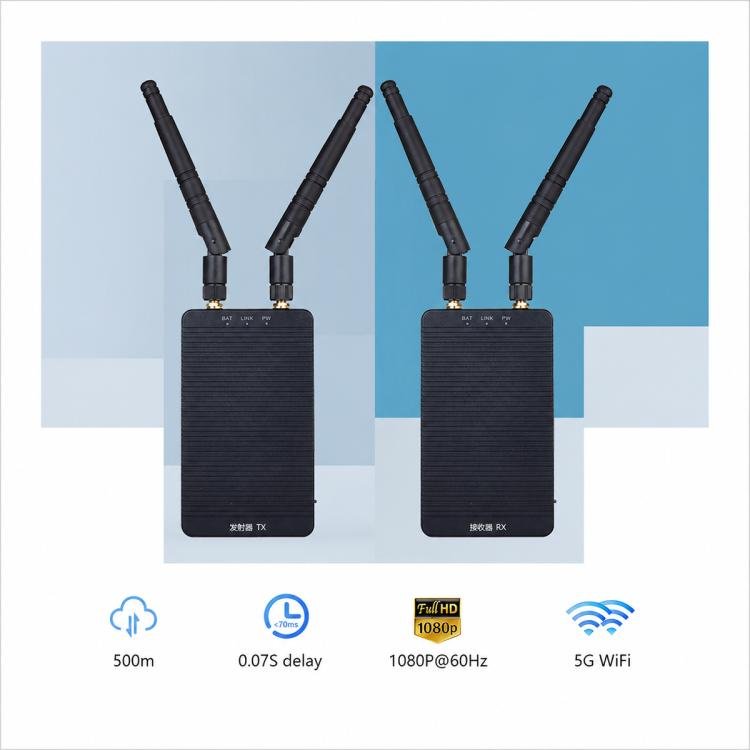

Features:
1. Ultra Long 500m Transmission: Features high-performance 5GHz Wi-Fi technology to achieve stable wireless video transmission up to 500 meters (1640 feet) line of sight.
2. Full HD 1080P 60Hz Resolution: Supports crystal-clear 1080P high-definition video input and output at 60Hz for smooth, real-time monitoring and streaming.
3. Ultra Low Latency Performance: Delivers an ultra-low latency of only 70ms (0.07s), ensuring near real-time video feed for live production, filming, and monitoring.

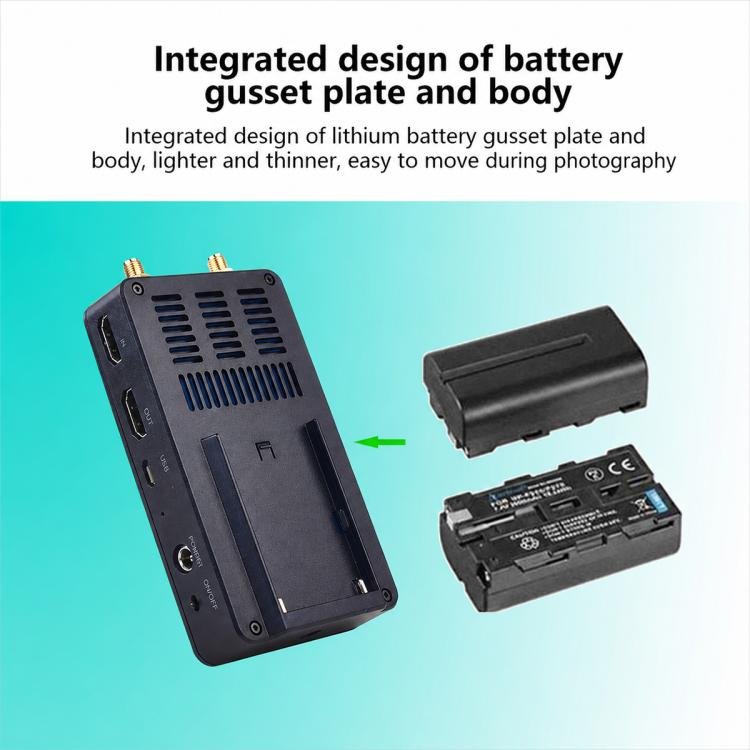

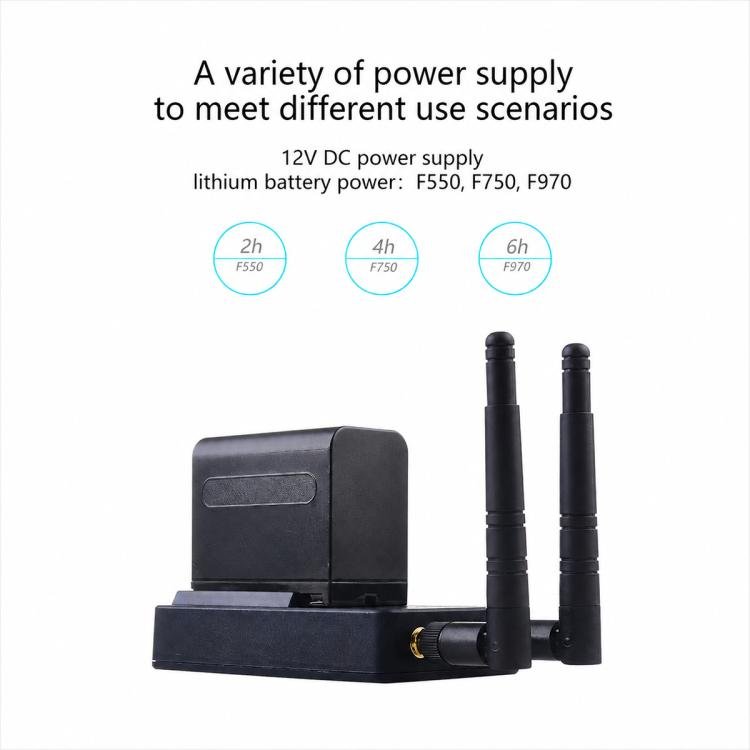

4. Flexible Dual Power Options: Supports both DC 12V power supply and NP-F series lithium batteries for convenient indoor and outdoor operation.
6. Versatile Interface Design: Transmitter features HDMI input and HDMI loop-out; Receiver provides dual HDMI outputs for connecting multiple monitors simultaneously.
Specifications:
1. Wireless Frequency Band: 5GHz
2. Transmission Range: 500m
3. Transmission Latency: 70ms (0.07s)
4. Transmission Power: 17dBm
5. Receiver Sensitivity: -85dBm
6. Power Supply: DC 12V / NP-F Lithium Battery
7. Unit Weight: 105g

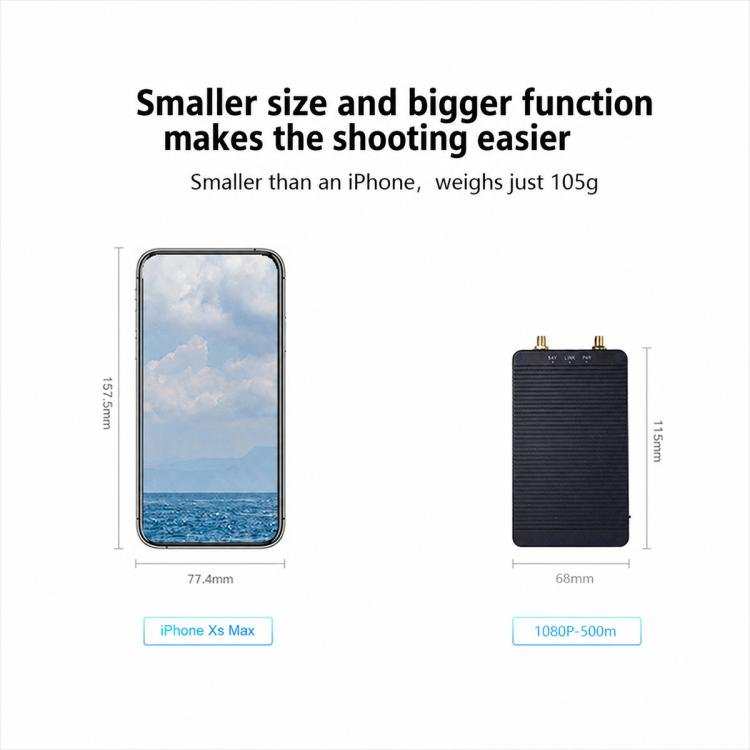

8. Dimensions: 115 x 68 x 22 mm
Transmitter:
1. Interfaces: HDMI Input x 1, HDMI Output x 1
2. Power Consumption: < 2.5W
3. Input Resolution: 720P 50/60Hz, 1080P 24/25/30/50/60Hz
4. Output Resolution: 720P 50/60Hz, 1080P 24/25/30/50/60Hz
Receiver:
1. Interfaces: HDMI Output x 2
2. Power Consumption: < 2W
3. Output Resolution: 720P 50/60Hz, 1080P 24/25/30/50/60Hz
Specification:
| Package Weight |
| One Package Weight |
0.68kgs / 1.51lb |
| One Package Size |
19cm * 15cm * 9cm / 7.48inch * 5.91inch * 3.54inch |
| Carton Weight |
11.88kgs / 26.19lb |
| Carton Size |
40cm * 32cm * 38cm / 15.75inch * 12.6inch * 14.96inch |
| Loading Container |
20GP: 548 cartons * 16 pcs = 8768 pcs
40HQ: 1272 cartons * 16 pcs = 20352 pcs |
|
