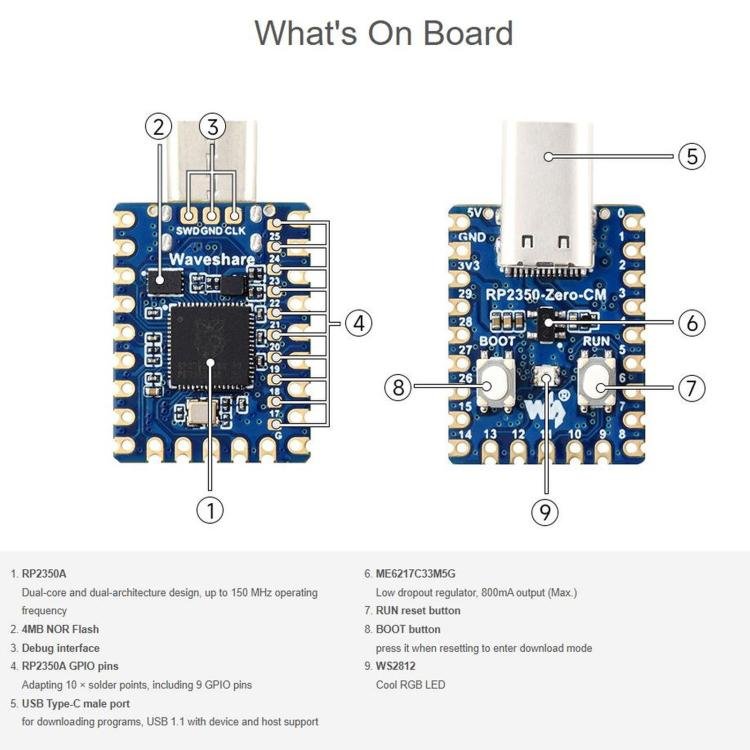

1. Features the RP2350A microcontroller chip developed by Raspberry Pi
2. Unique dual-core, dual-architecture design, featuring a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both operating at clock speeds of up to 150 MHz, and supporting flexible switching between the two architectures
3. Features 520KB of SRAM and 4MB of on-chip Flash
4. Features a Type-C male connector design
5. Supports power delivery via the Type-C interface (compatible with the PD protocol)

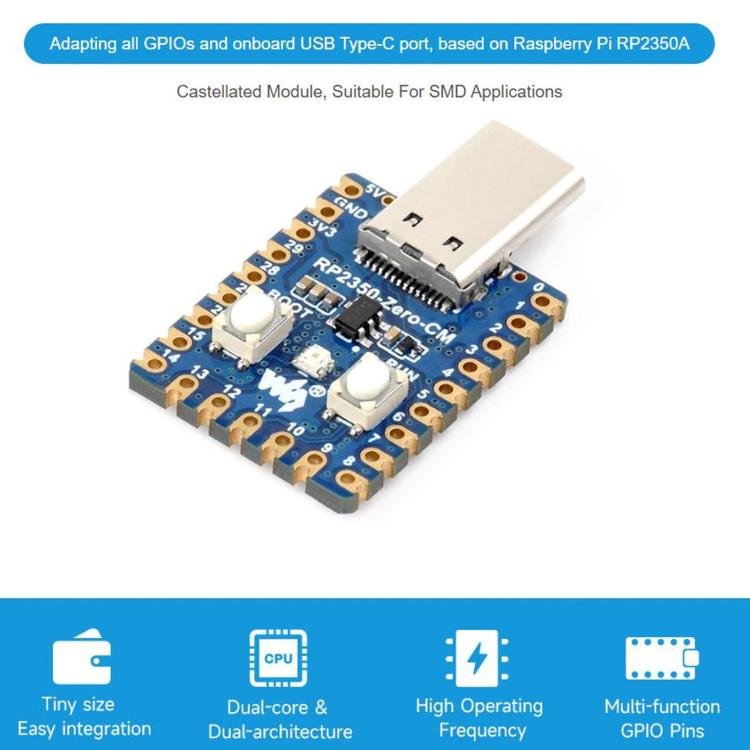

6. Features a “stamp-hole” design, allowing direct soldering onto a user-designed backplane
7. Supports USB 1.1 host and device modes
8. Supports low-power sleep and hibernation modes
9. Can be recognized as a mass storage device via USB for drag-and-drop program downloads

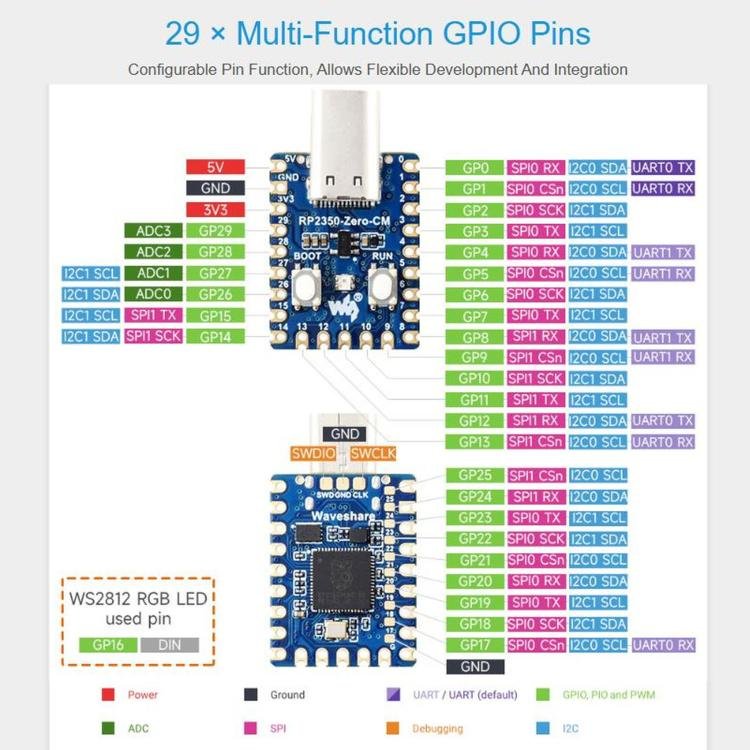

10. The RP2350A exposes 29 GPIO pins (20 via a header, the rest available only for soldering)
11. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 16 controllable PWM channels
12. Precise on-chip clock and timers
13. Built-in temperature sensor for real-time chip temperature monitoring
14. 12 programmable I/O (PIO) state machines for custom peripheral support

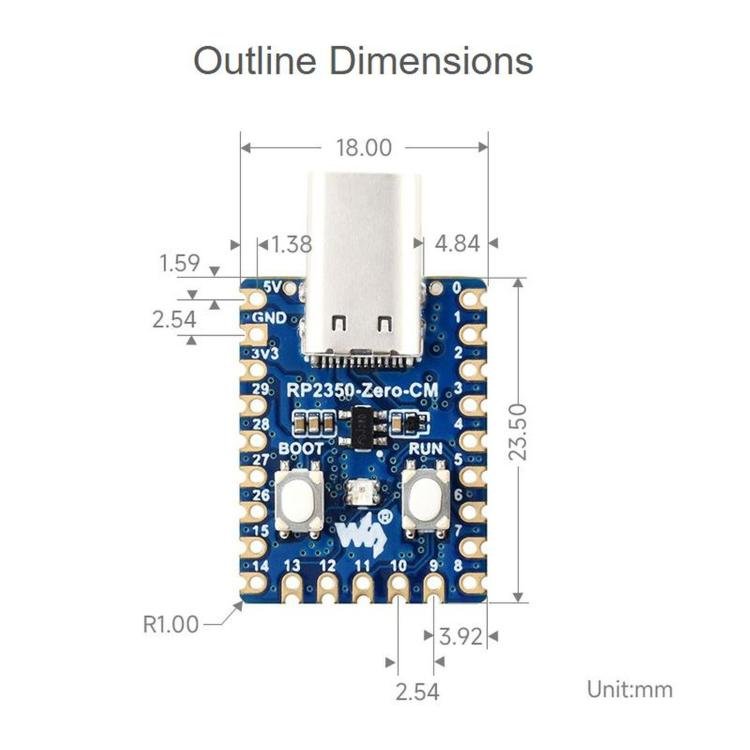

15. Dimensions: approximately 23.5 x 18 mm
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.05lb |
| One Package Size |
8cm * 6cm * 2cm / 3.15inch * 2.36inch * 0.79inch |
| Carton Weight |
20.50kgs / 45.19lb |
| Carton Size |
32cm * 22cm * 18cm / 12.6inch * 8.66inch * 7.09inch |
| Loading Container |
20GP: 2104 cartons * 1000 pcs = 2104000 pcs
40HQ: 4885 cartons * 1000 pcs = 4885000 pcs |
|
