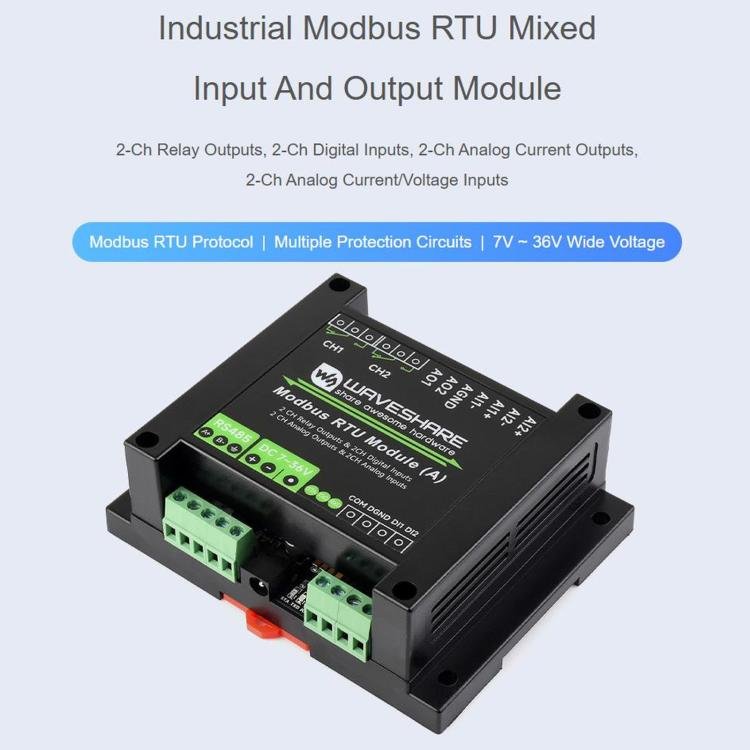

1. Supply Voltage: 7V – 36V
2. Communication Interface: RS485
3. Communication Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
4. Default Communication Format: 9600, N, 8, 1
5. Modbus Protocol: Standard Modbus RTU protocol
6. RS485 Address Setting: 1-255

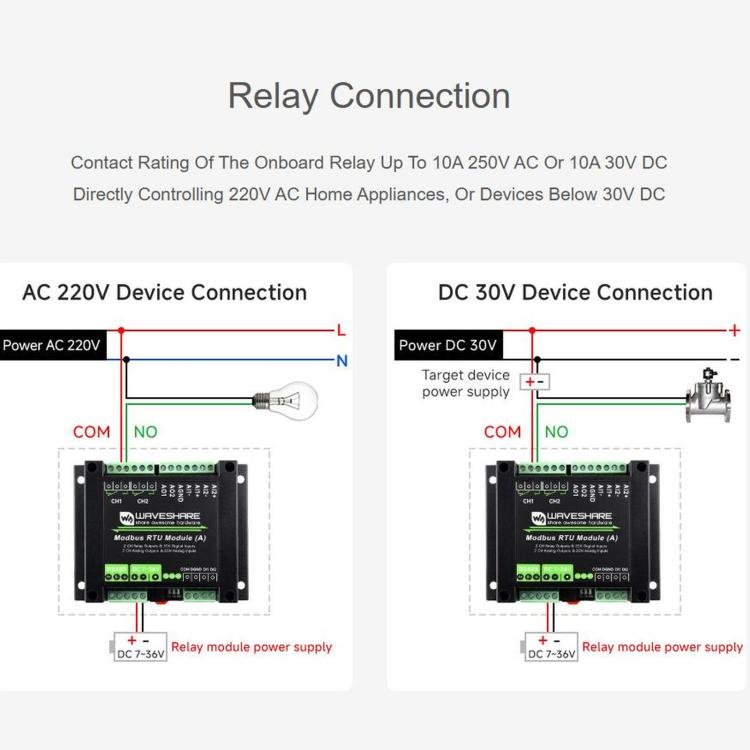

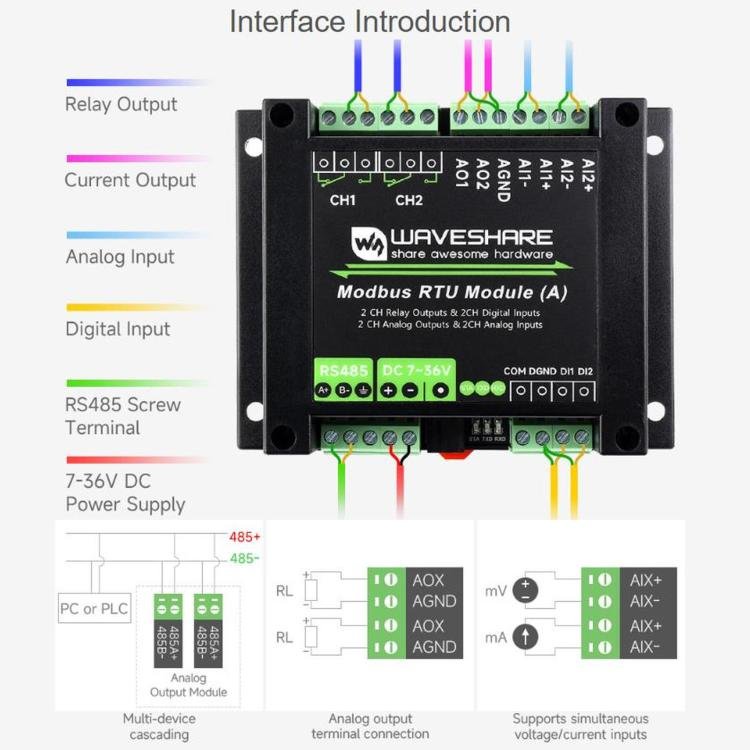

7. Relay Output:
– Number of Relay Channels: 2
– Contact Type: One normally open, one normally closed
– Contact Load: ≤10 A at 250 V AC or ≤10 A at 30 V DC

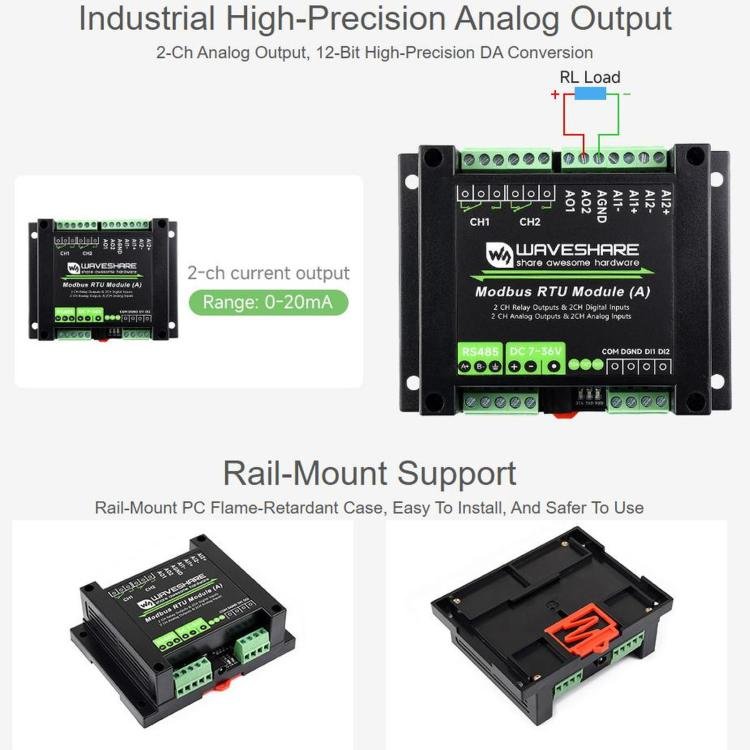

8. Analog Output:
– Output Mode: 2 current output channels
– Resolution: 12 bits, 1 μA
– Range: 0–20 mA
– Output Accuracy: +/-0.03 mA

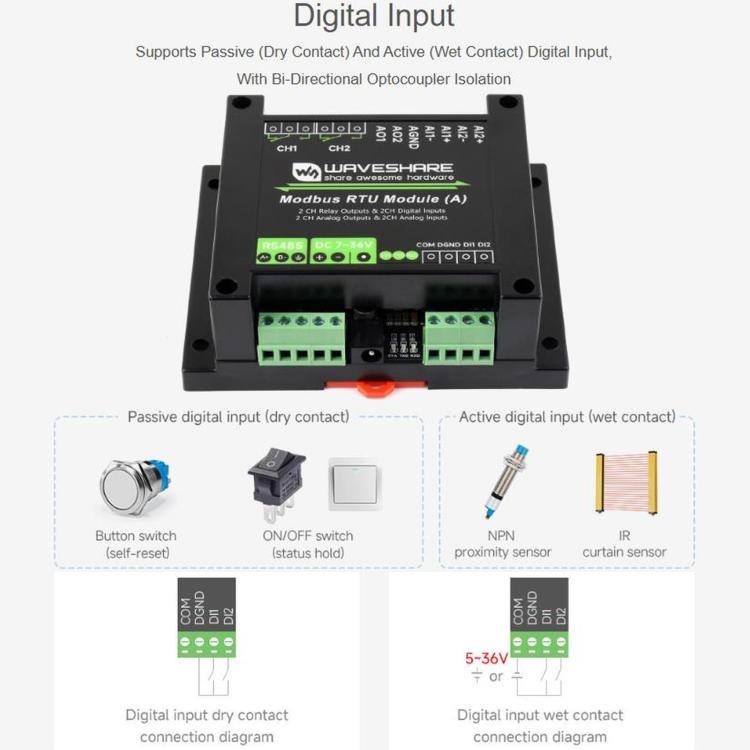

9. Digital Inputs:
– Number of Digital Inputs: 2 channels
– Active Input Range: 5 V-36 V DC
– Input Type: Passive Input/Active Input (NPN or PNP type)
– Isolation Type: Bidirectional optocouplers

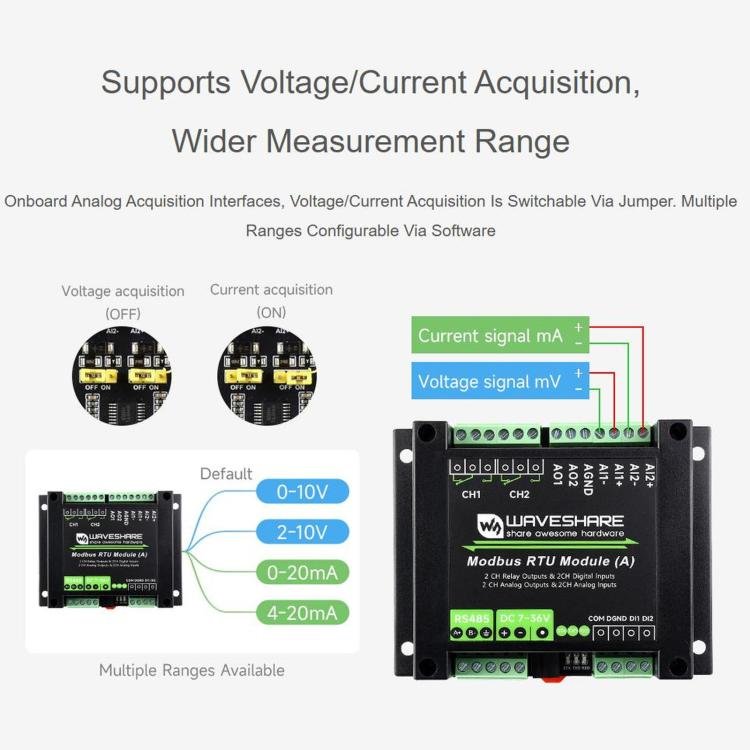

10. Analog Inputs:
– Number of Analog Inputs: 2 channels
– Range: 0-10V / 2-10V, 0-20mA / 4-20mA
– Sampling Accuracy: 12-bit resolution, accuracy within 0.3%
– Data update rate: 31Hz
– Current sensing resistor: 249 ohms

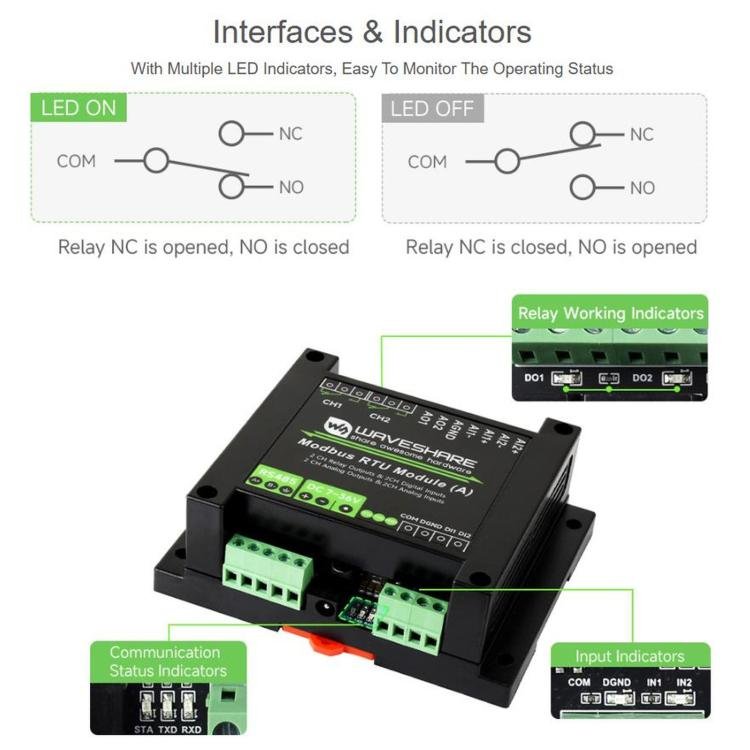

11. Indicator Lights:
– STA: MCU indicator light; flashes when the MCU is operating normally
– TXD: Transmit indicator light; illuminates when data is being transmitted
– RXD: Receive indicator light; illuminates when data is being received

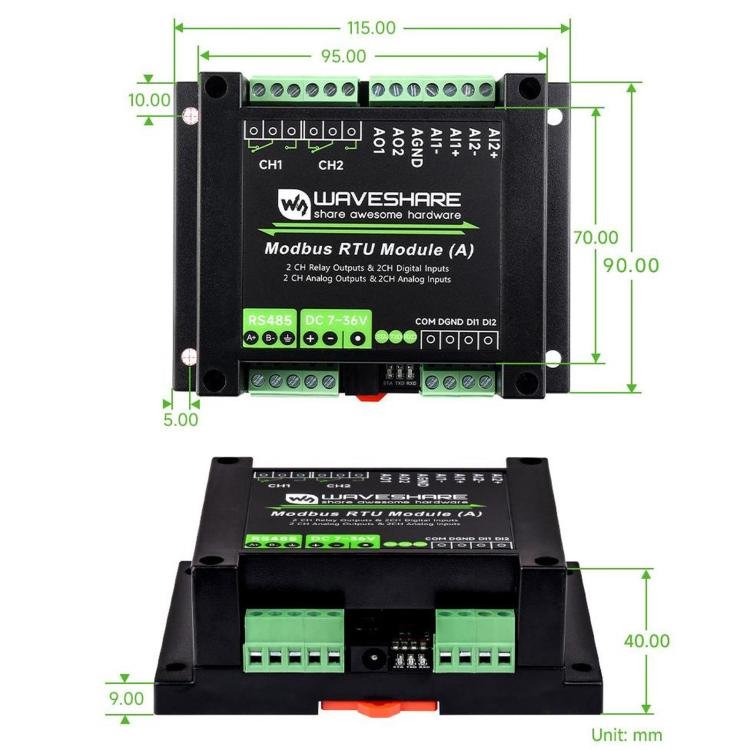

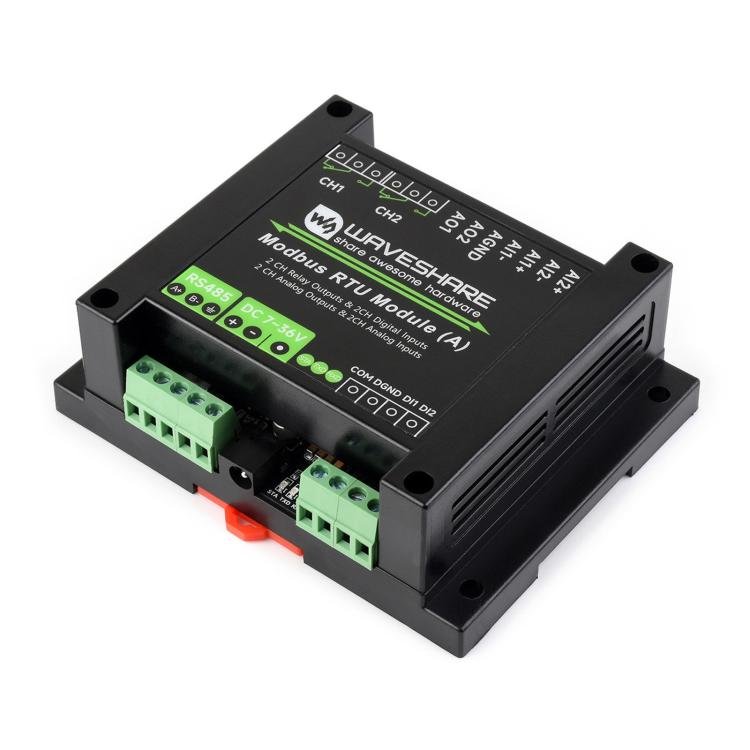

12. Dimensions: Approx. 11.5 x 9 x 4 cm

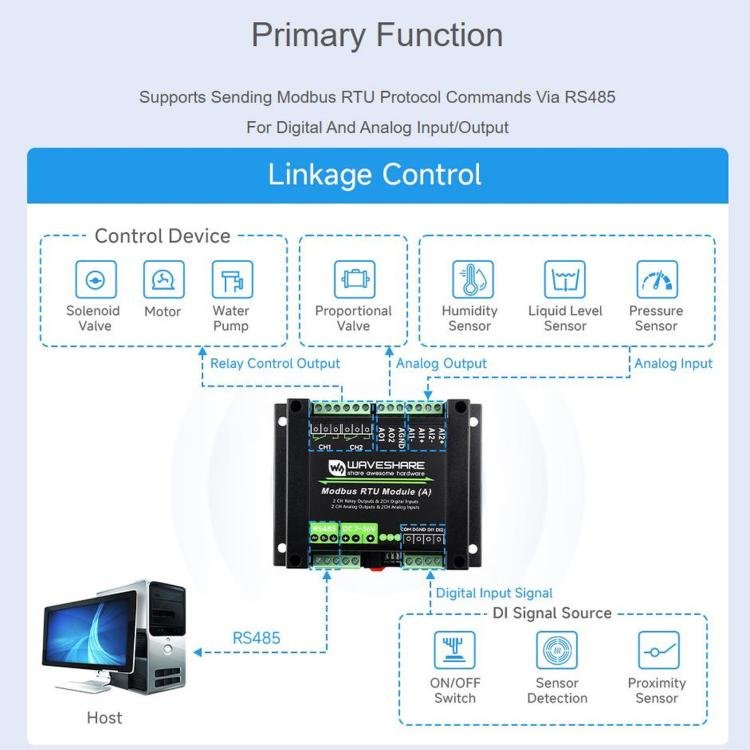

Features:
1. Supports a wide supply voltage range of 7V–36V and allows for device address configuration (1–255) to enable daisy-chaining of multiple devices via the RS-485 bus
2. Supports power isolation and magnetic coupling isolation, enabling dual isolation of both power and signals in the communication section, resulting in high reliability and strong interference resistance
3. On-board self-resetting fuses and TVS (transient voltage suppressors) effectively suppress surge voltages and transient spikes in the circuit, providing protection against overcurrent, overvoltage, thunderstorms strikes, and static electricity
4. Digital inputs feature bidirectional optocoupler isolation, support both passive and active digital inputs, and include a built-in debouncing algorithm; relays support either linked mode or toggle mode control
5. 12-bit high-precision data acquisition, multiple input range modes, supports single-ended/differential inputs, and simultaneous voltage and current acquisition
6. Utilizes high-precision resistors and zero-drift precision operational amplifiers for more accurate output and data acquisition
7. Equipped with high-quality relays; supports loads of up to 10A at 250V AC or 10A at 30V DC

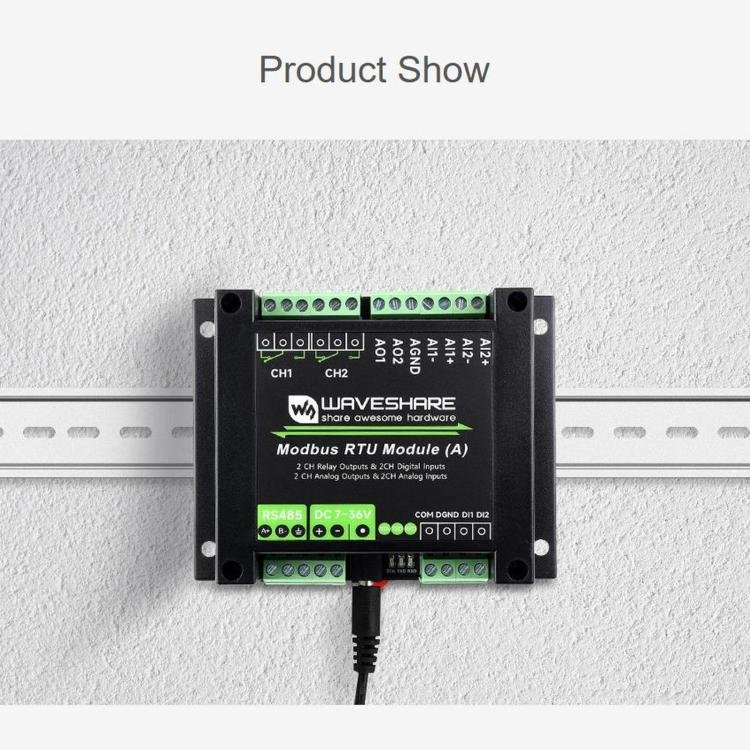

8. DIN-rail-mountable, flame-retardant PC protective housing ensures easy installation and safer, more reliable operation
9. Three external LED indicators facilitate monitoring of the MCU status and signal transmission/reception status
Specification:
| Package Weight |
| One Package Weight |
0.20kgs / 0.45lb |
| One Package Size |
13cm * 11cm * 5cm / 5.12inch * 4.33inch * 1.97inch |
| Carton Weight |
11.00kgs / 24.25lb |
| Carton Size |
54cm * 28cm * 27cm / 21.26inch * 11.02inch * 10.63inch |
| Loading Container |
20GP: 653 cartons * 50 pcs = 32650 pcs
40HQ: 1516 cartons * 50 pcs = 75800 pcs |
|
