1. Frequency Response: 20 Hz – 20 kHz
2. Dynamic Range: 80 dB
3. Distortion: <0.1% (1 kHz, maximum level)
4. Number of Input Channels: 2
5. Nominal Input Level: -10 dB
6. Input Impedance: 20 k ohm (Stereo), 10 k ohm (L-Mono)
7. Number of Output Channels: 2
8. Nominal Output Level: -10 dB
9. Output Impedance: 2 k ohm (Stereo), 1 k ohm (L-Mono)
10. AD/DA Conversion: 16-bit
11. Sampling Frequency: 44.1 kHz
12. Power Supply: DC 12V
13. Weight: Approx. 2.5 kg
14. Dimensions: Approx. 48 x 23.2 x 4.55 cm
Features:
1. Features 99 preset digital effect programs, including reverb, stereo reverb, gated reverb, delay, and various modulation combinations—allowing for quick, one-touch switching and recall.

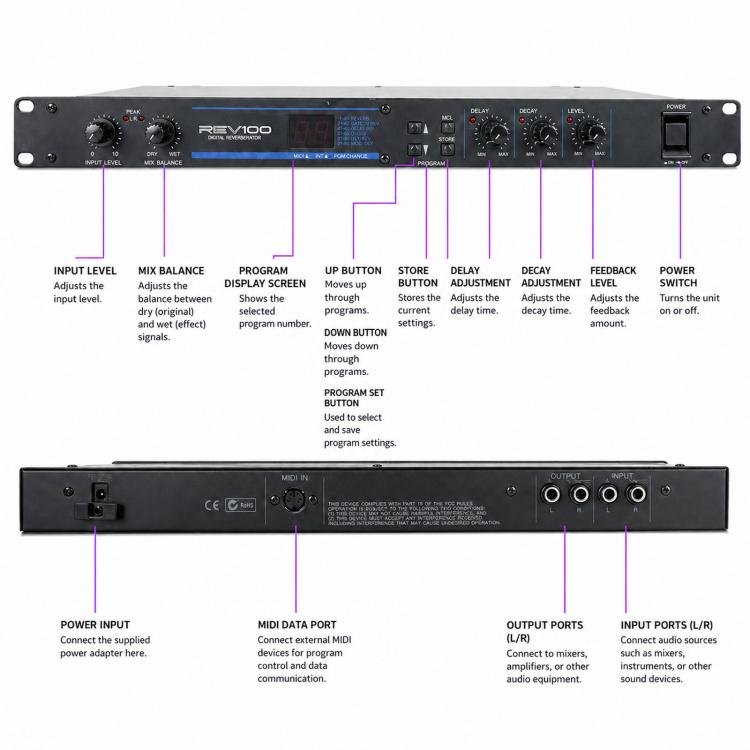

2. The front panel is equipped with dedicated knobs for input level and dry/wet mix, as well as independent controls for delay time, decay time, and output level, making it easy to adjust the depth of spatial reverb effects.
3. The rear panel features standard 6.35mm (1/4″) L/R input and output jacks, supporting professional stereo or mono signal transmission while ensuring low-noise, lossless signal integrity.
4. Includes a standard 5-pin MIDI IN port for connection to computers or external MIDI controllers, enabling sound engineers to manage data and program settings via external devices.

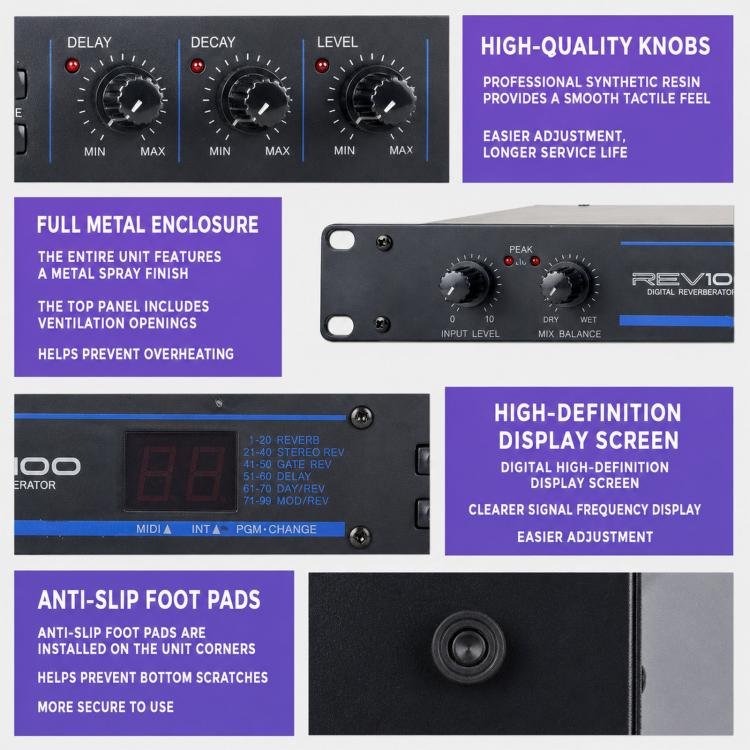

5. Designed for standard 19-inch rack mounting, the unit features a painted stainless steel chassis, non-slip feet, and top-mounted ventilation vents to ensure stable, long-term operation.
Specification:
| Package Weight |
| One Package Weight |
3.00kgs / 6.62lb |
| One Package Size |
54cm * 30cm * 9cm / 21.26inch * 11.81inch * 3.54inch |
| Carton Weight |
16.00kgs / 35.27lb |
| Carton Size |
57cm * 47cm * 32cm / 22.44inch * 18.5inch * 12.6inch |
| Loading Container |
20GP: 311 cartons * 5 pcs = 1555 pcs
40HQ: 722 cartons * 5 pcs = 3610 pcs |
|
