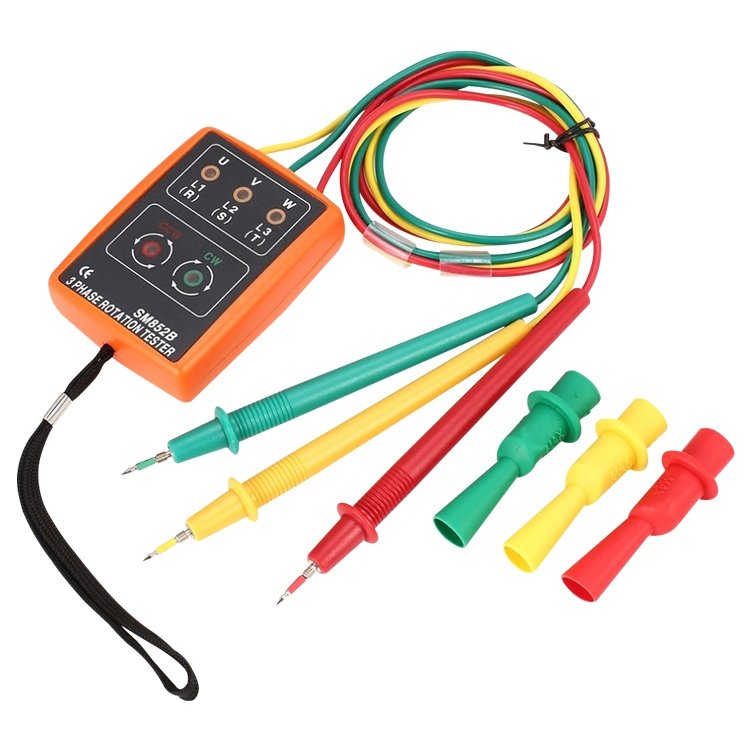

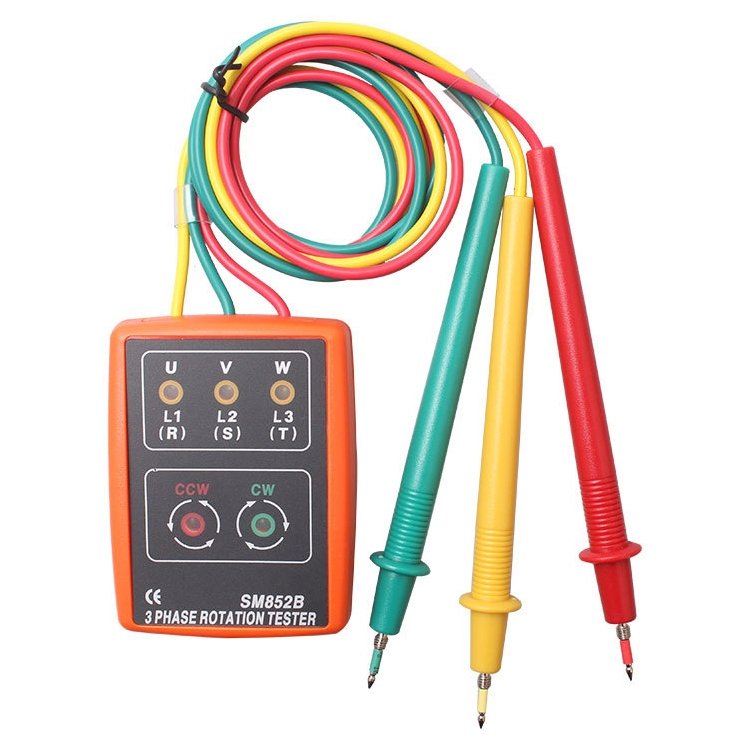

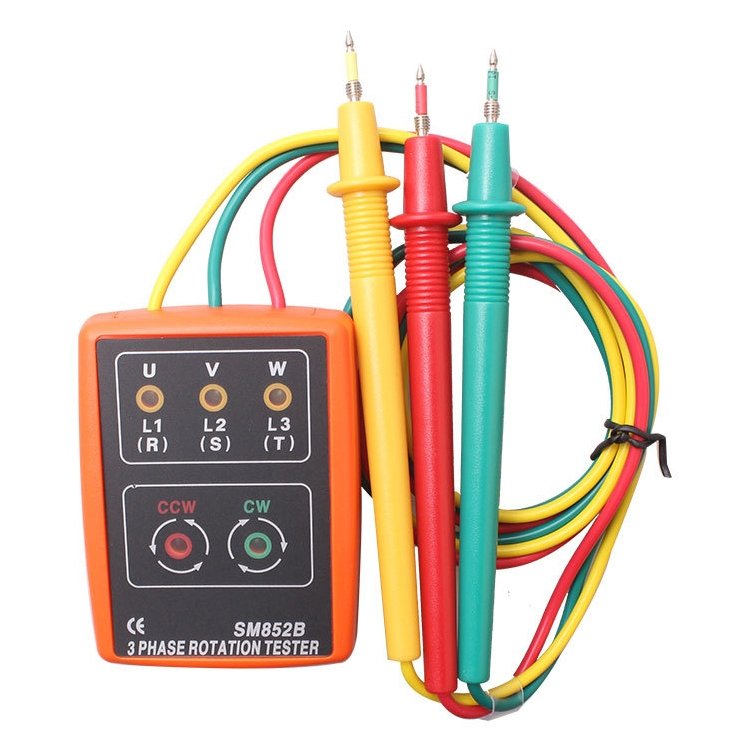

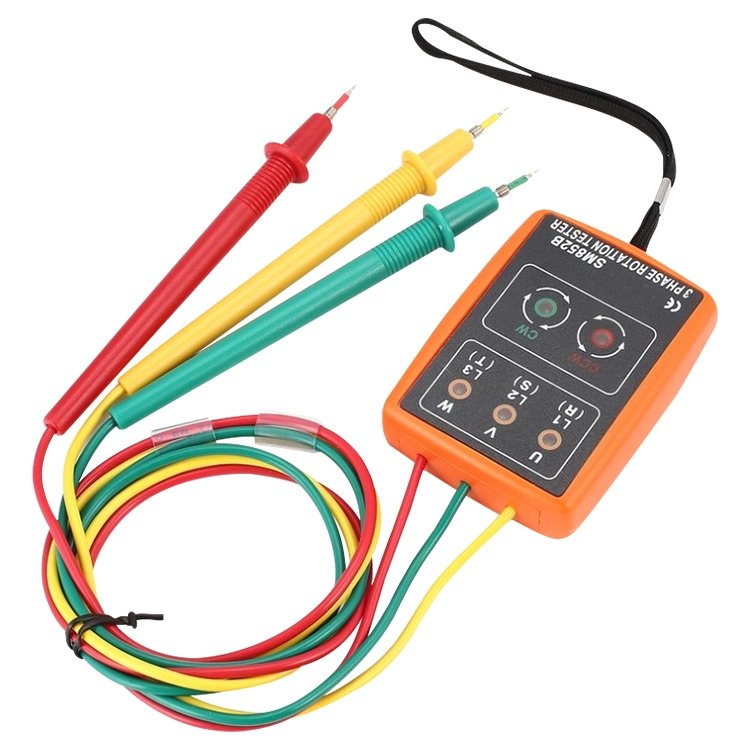

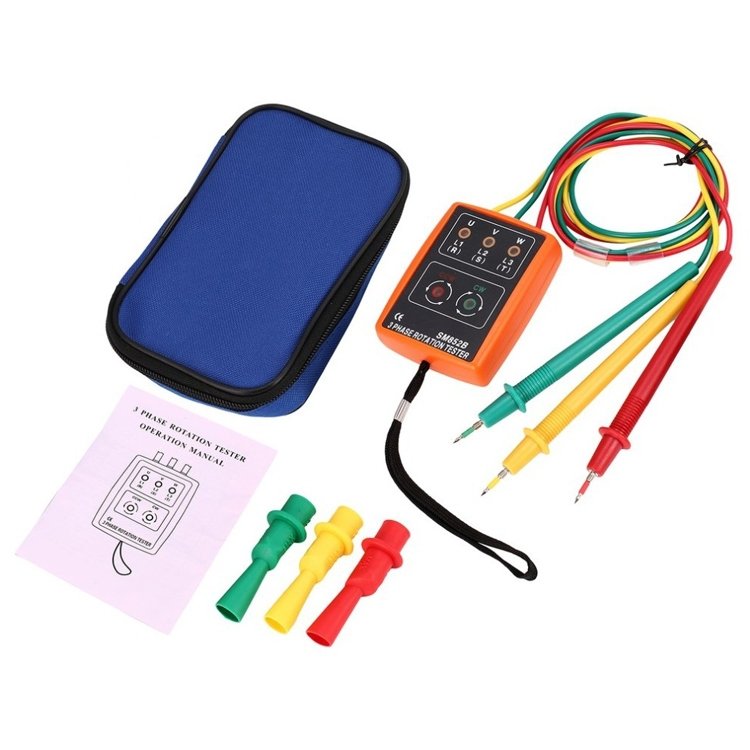

1. Description: It is used to measure the opening phase condition and order through LED and Buzzer.
2. Measuring frequency range:20Hz~400Hz
3. Operational Voltage:60V-600V (3 Phase AC)
4. Limit Support Voltage: 2000V/minute (impulse voltage 4000V)
5. Limit Time for continuous use:
– 60 minutes maximum at 200V AC
– 4 minutes maximum at 600V AC
6. Test Leads: Double insulation, with 67cm length (Approx.)

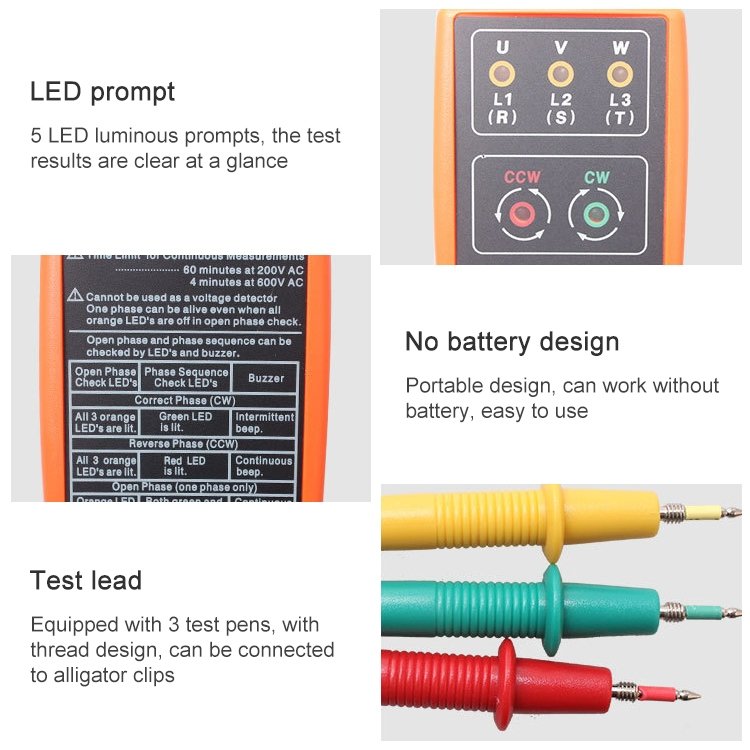

7. One unit with 2 functions: The instrument was designed to check the phase sequence, and at the same time it has LEDs to show you if the phase is open or not.
8. Alligator Clips: They can easily involve the terminals of the control panel to be tested, guaranteeing reliability and safety.
9. Highly reliable: It can check a large range of 60V to 600V AC three-phase. The instrument guarantee high reliance and performance.
10. Functional Design: Small, light and portable. It was designed to facilitate the operation to the maximum.
11. Dimensions: 85x64x23mm(Approx.)
Specification:
| Package Weight |
| One Package Weight |
0.25kgs / 0.56lb |
| Carton Weight |
11.60kgs / 25.57lb |
| Carton Size |
40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch |
| Loading Container |
20GP: 740 cartons * 40 pcs = 29600 pcs
40HQ: 1719 cartons * 40 pcs = 68760 pcs |
|
