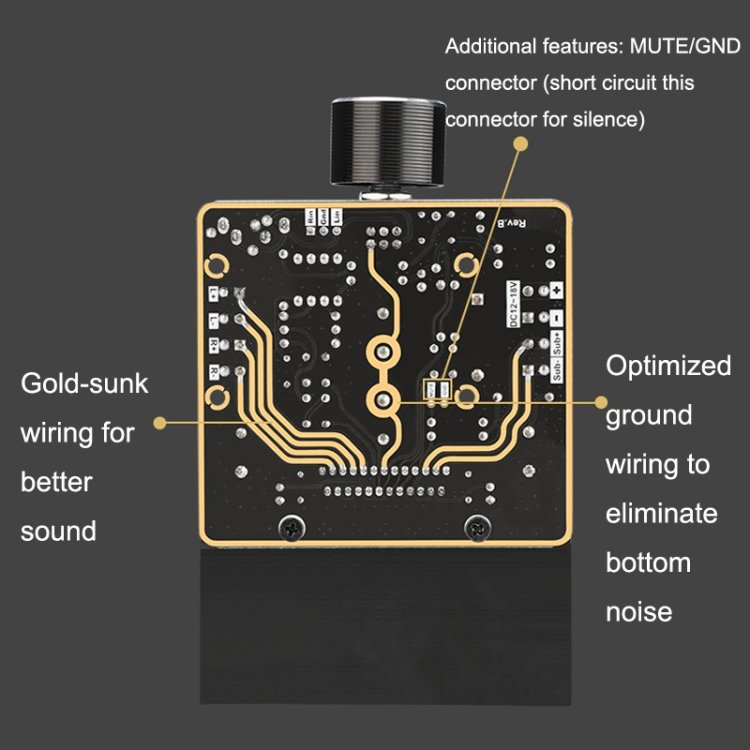

1. Gold-sunk wiring for better sound
2. Optimized ground wiring to eliminate bottom noise

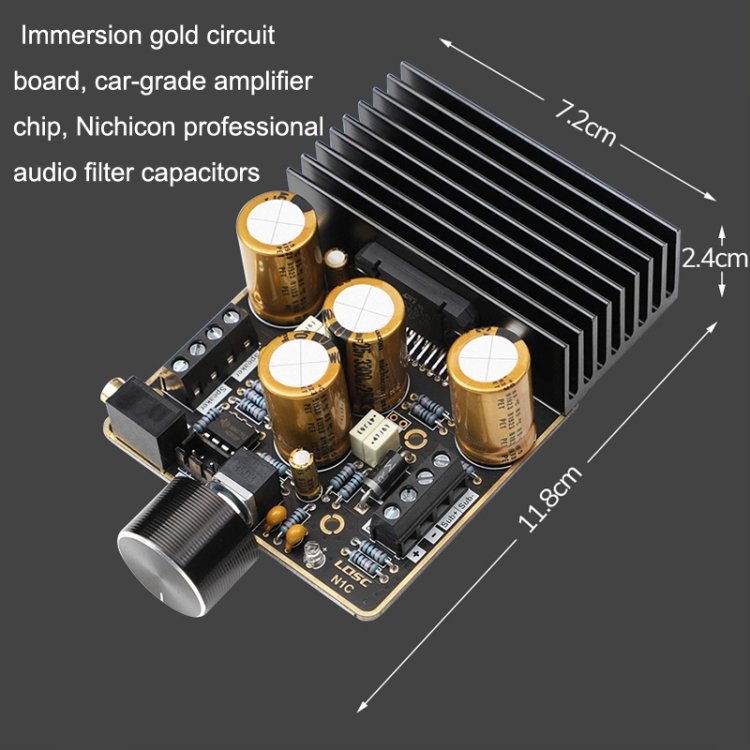

3. Immersion gold circuit board, car-grade amplifier chip, Nichicon professional audio filter capacitors

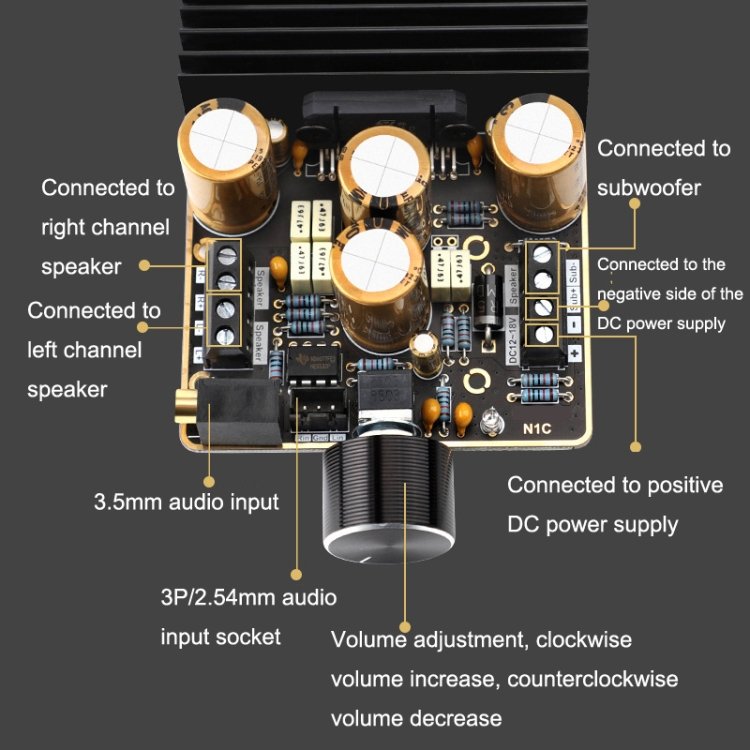

4. Input mode: 3.5mm audio cable input or 3P 2.54mm terminal input
5. Can be connected to 2/4/6/8 ohm speakers
6. Protection function: reverse power input protection, short circuit protection, over-current protection, overheat protection
7. Supply voltage: DC12-18V
8. Output power: 2x80W stereo (18V / 4 ohms) and 1x120W pure bass (18V / 2 ohms)
9. Potentiometer knob opening: 7mm
10. Mounting hole spacing: 25.4×48.26mm (Bluetooth module spacing compatible)
11. PCB size: 72.36 x 66.65mm
12. Overall (including heat sink):: 72.36 x 96 x 27mm
13. Weight: 170g
Specification:
| Package Weight |
| One Package Weight |
0.24kgs / 0.52lb |
| One Package Size |
15cm * 10cm * 4cm / 5.91inch * 3.94inch * 1.57inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 118 pcs = 20886 pcs
40HQ: 412 cartons * 118 pcs = 48616 pcs |
|
