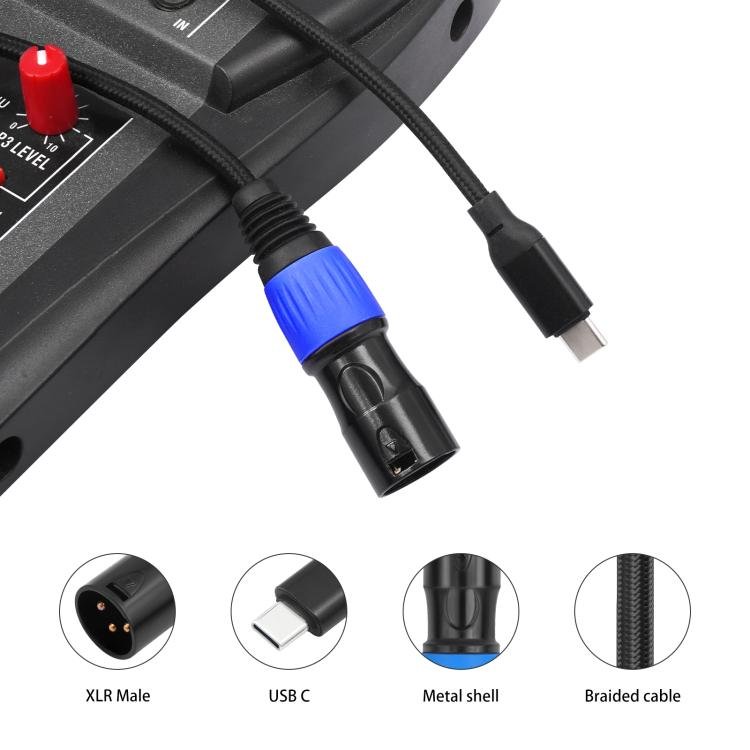

1. Product use: This audio cable can convert smart devices with Type-C interface (mobile phones, laptops, tablets) into XLR male output.

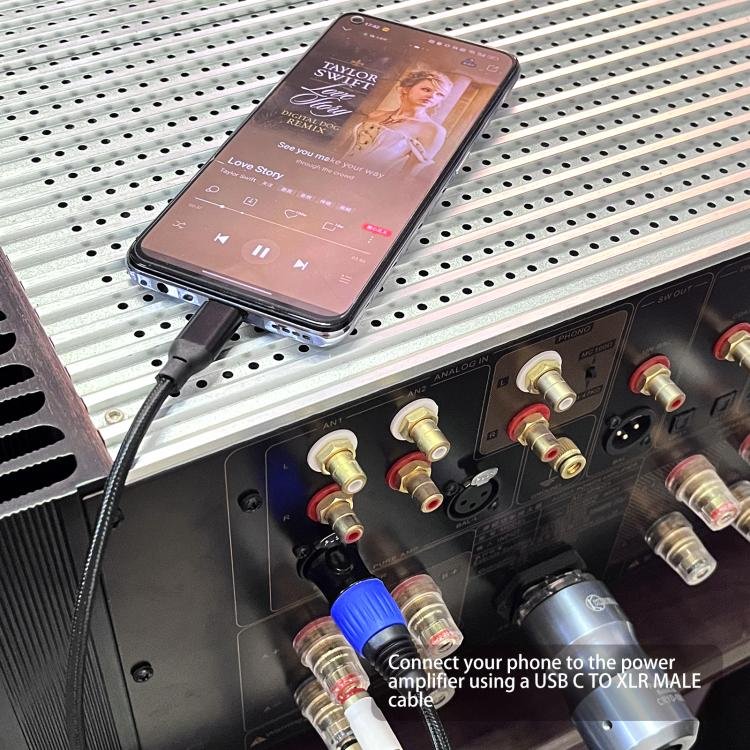

2. The output end can be connected to power amplifiers, active speakers, stage speakers, etc.

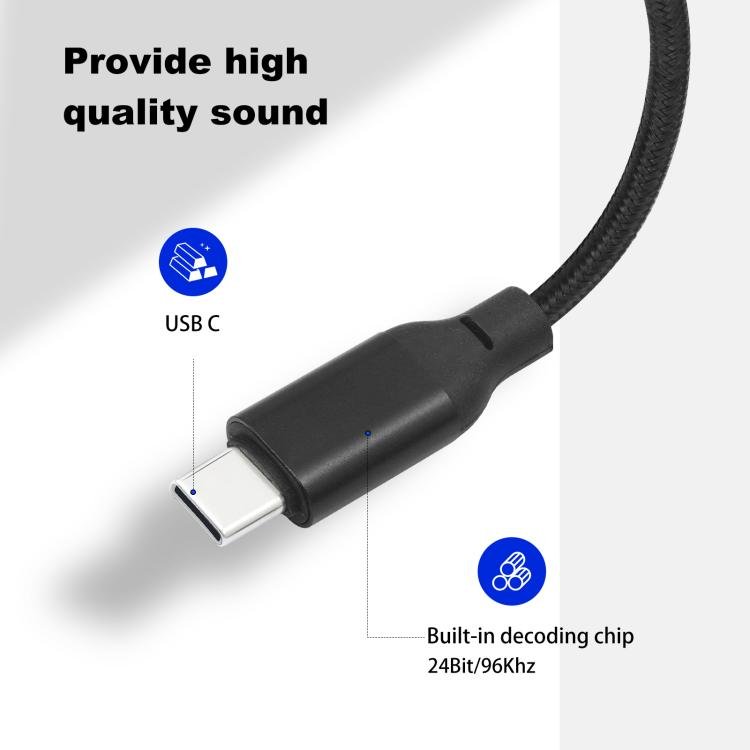

3. Adopting a 24Bit/96KHz decoding chip, the sampling rate is higher, the sound is more delicate, the driving force is greater, and the signal-to-noise ratio is higher. The overall experience is greatly improved compared with similar products.

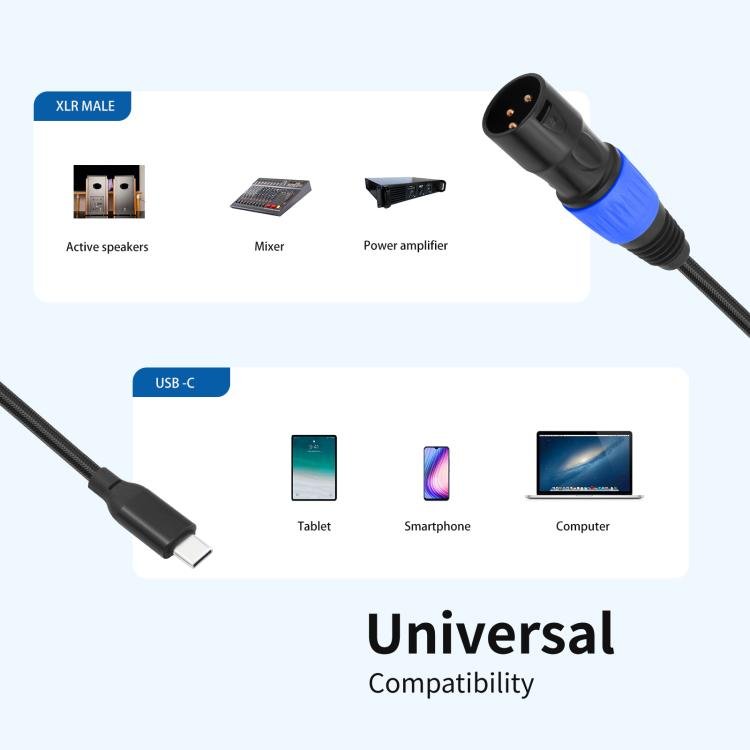

4. USB-C is compatible with Android, iOS, MAC OS, WINDOWS 7/8/10/11 operating systems
5. Plug and play, no driver required.
6. Please note that this product is a one-way conversion, the XLR plug cannot be connected to a microphone, and the product is not compatible with game consoles, TVs, and set-top boxes.
7. Output parameters
Audio decoding: DAC 24Bit 96KHz
SNR: 95-105dB
Crosstalk: -80dB
THD+N: -85dB
Frequency response: 20Hz-20KHz
Working current: 40-50mA
Output impedance: 8 to 32ohm
Output level: 530 to 630mV
Specification:
| Package Weight |
| One Package Weight |
0.09kgs / 0.21lb |
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch |
| Carton Weight |
11.80kgs / 26.01lb |
| Carton Size |
30cm * 36cm * 40cm / 11.81inch * 14.17inch * 15.75inch |
| Loading Container |
20GP: 617 cartons * 120 pcs = 74040 pcs
40HQ: 1432 cartons * 120 pcs = 171840 pcs |
|
