Features
1. Automatically sleep to save energy after parking.
2. Support Operating System-Android 4.0 and Above

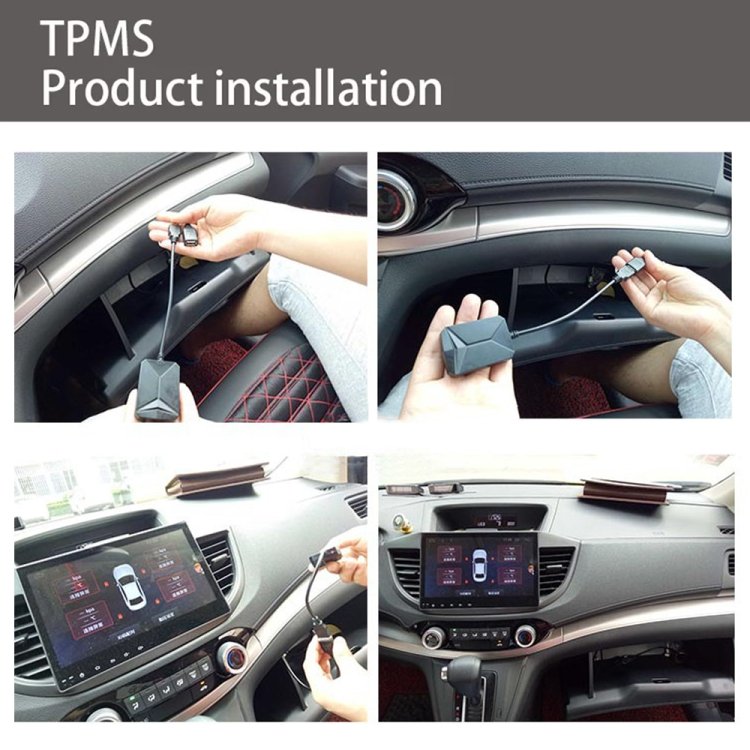

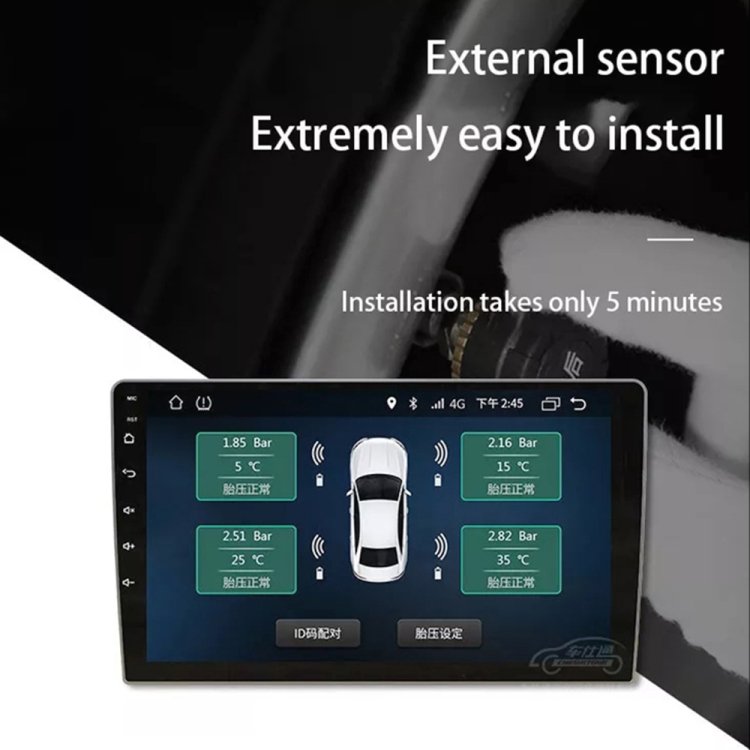

3. The TPMS receiver can be connected to Android car DVD via USB port.
4. Tire pressure and temperature data displaying on Android Car DVD screen.
5. Sound Alarm via car speakers and screen alarm when abnormality occurs.
6. Prevent tire burst, extend the life and save fuel of tire.
7. Sensor wakes up automatically when tire starts running.
Specification

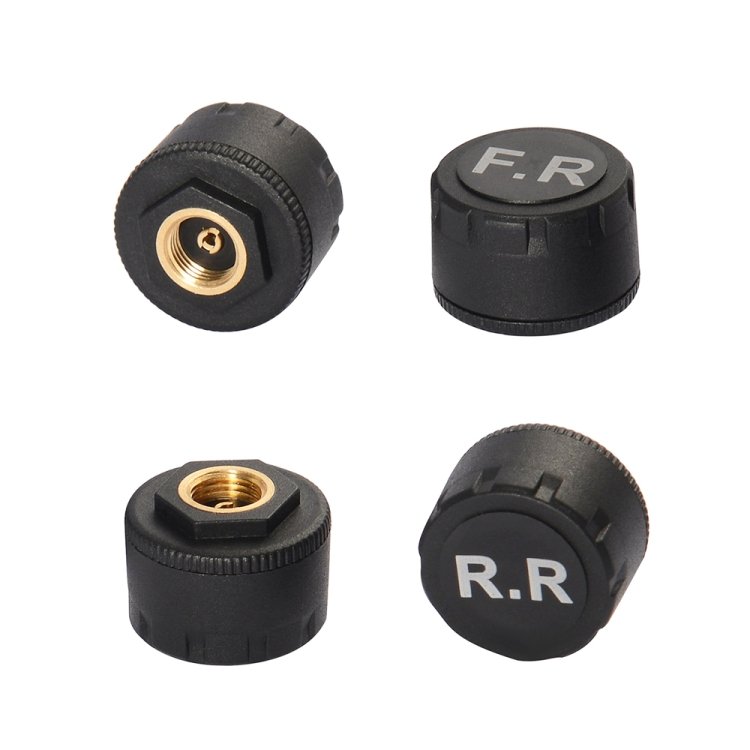

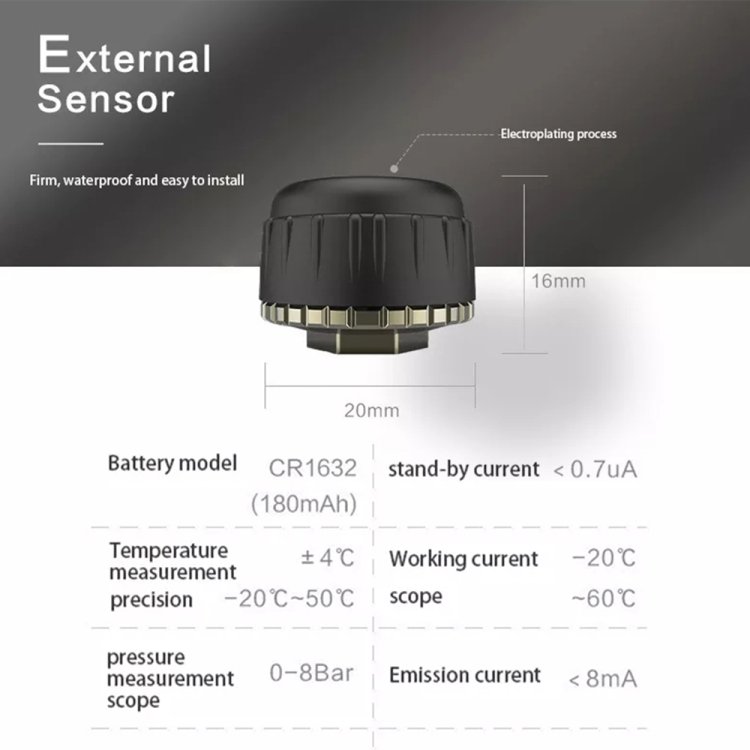

External Sensor:
1. Working Temperature: -20-60 degree Celsius
2. Working Frequency: 433.92MHZ
3. Battery Model: CR1632 180mA
4. Tire monitoring range value: 0 bar-8bar /0-116psi
5. Working Voltage: DC 5V
6. Waterproof: IP67
7. Chip: Senasic

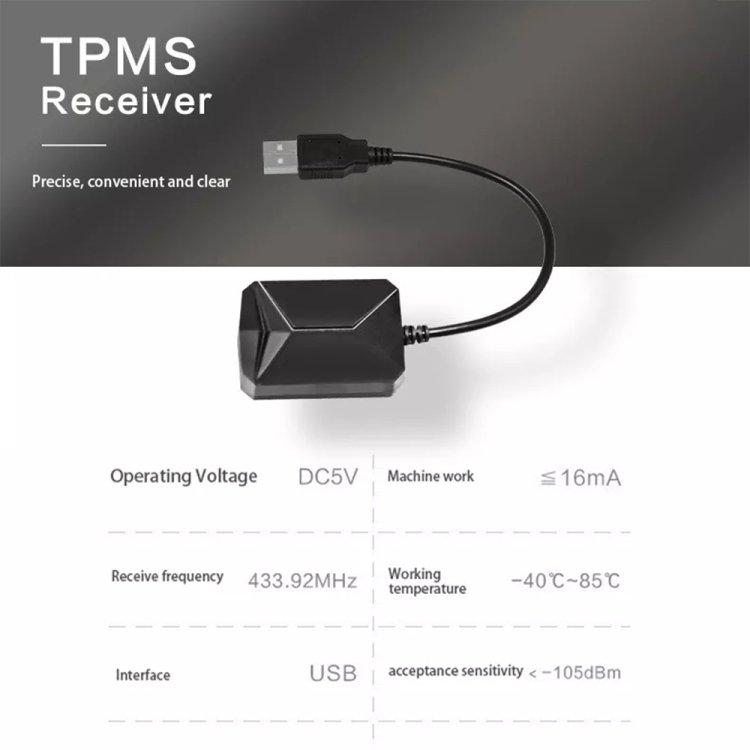

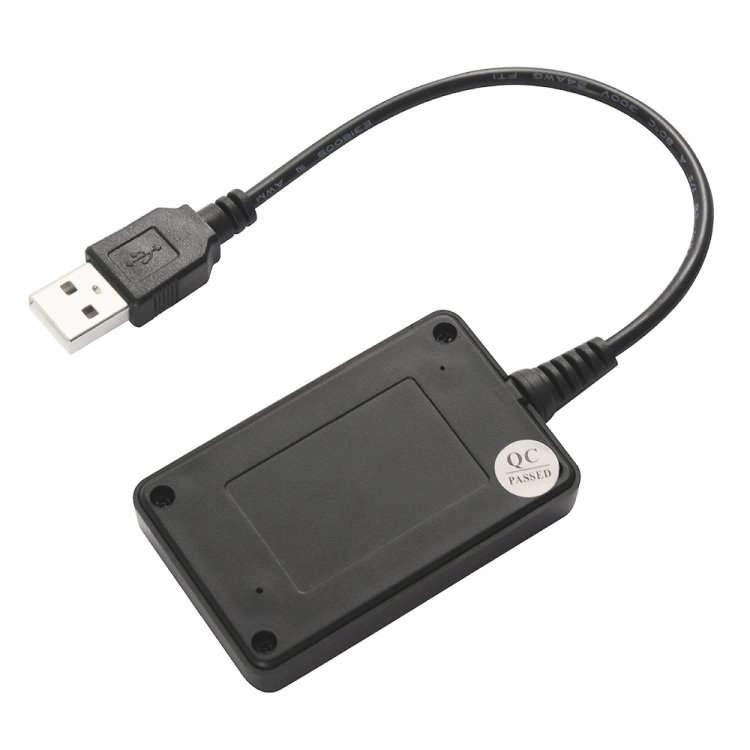

TPSM host:
1. Working voltage: DC5V
2. The whole machine works: less than or equal to 16mA
3. Receiving frequency: 433.92MHz
4. Working temperature: -40~85 degrees Celsius
5. Interface: USB
6. Receive sensitivity: less than -105dBm
Specification:
| Package Weight |
| One Package Weight |
0.18kgs / 0.39lb |

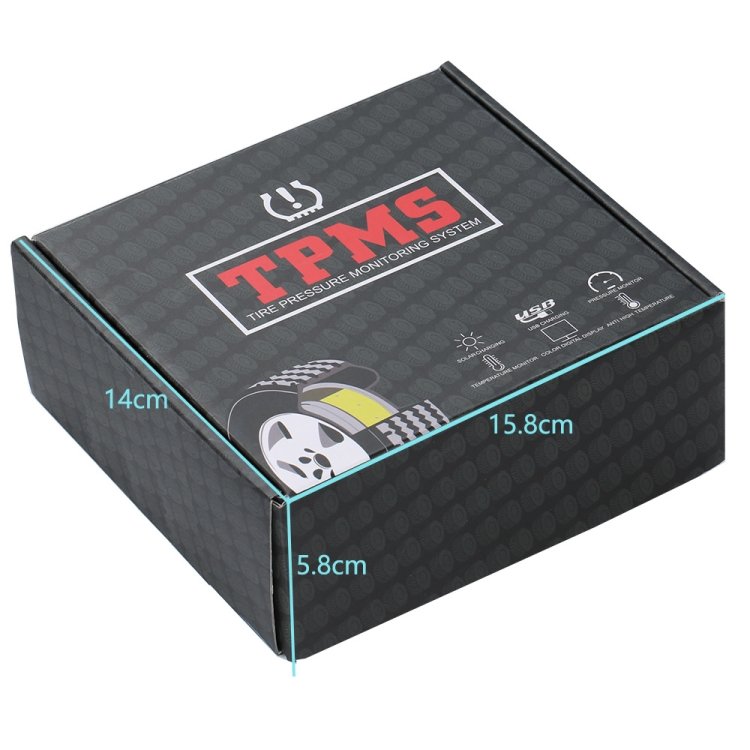

| One Package Size |
16cm * 15cm * 6cm / 6.3inch * 5.91inch * 2.36inch |
| Carton Weight |
7.65kgs / 16.87lb |
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 522 cartons * 30 pcs = 15660 pcs
40HQ: 1212 cartons * 30 pcs = 36360 pcs |
|
