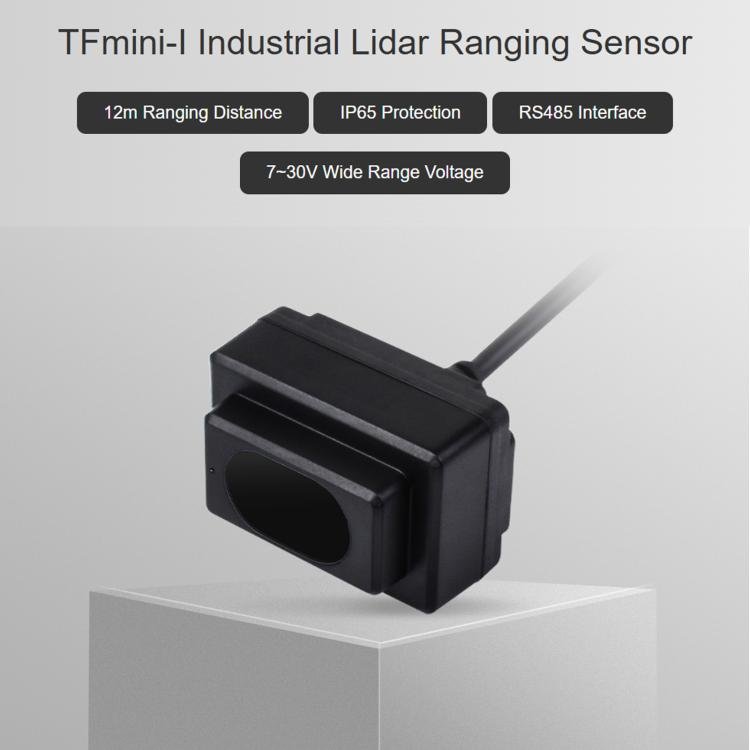

Waveshare 24896 TFmini-i Industrial Lidar Ranging Sensor 12m Ranging Distance, IP65 Protection, RS485 Industrial Interface
₹40,496.00
100 in stock
1. TFmini-i is a single-point ranging LiDAR upgraded from the TFmini-S. It features optimized enhancements in communication interfaces and input voltage to meet the demands of various industrial scenarios. Based on the ToF (Time of Flight) principle, the product delivers stable, precise, and highly sensitive measurement performance.
2. Working Principle: TFmini-i operates on the ToF (Time of Flight) principle. Specifically, the device periodically emits near-infrared modulated light waves, which reflect back upon hitting an object. The device calculates the relative distance between itself and the target by measuring the phase difference of the round-trip modulated waves to determine the time of flight.
3. Supports wide voltage input and RS-485 interface.
4. Application Scenarios: Pedestrian detection / Vehicle detection / Altimeter / Robotics.
Specifications
Performance Parameters
1. Ranging Range:
–0.1m to 12m at 90% reflectivity (Indoor 0Klux)
–0.1m to 7m at 10% reflectivity (Indoor 0Klux)
–0.1m to 12m at 90% reflectivity (Outdoor 70Klux)
–0.1m to 7m at 10% reflectivity (Outdoor 70Klux)
2. Accuracy:
–plus or minus 6cm (0.1m to 6m)
–plus or minus 1% (6m to 12m)
3. Distance Resolution: 1cm
4. Frame Rate: 1 to 40Hz
5. Ambient Light Immunity: 70Klux
6. Operating Temperature: minus 20 to 60 degrees Celsius

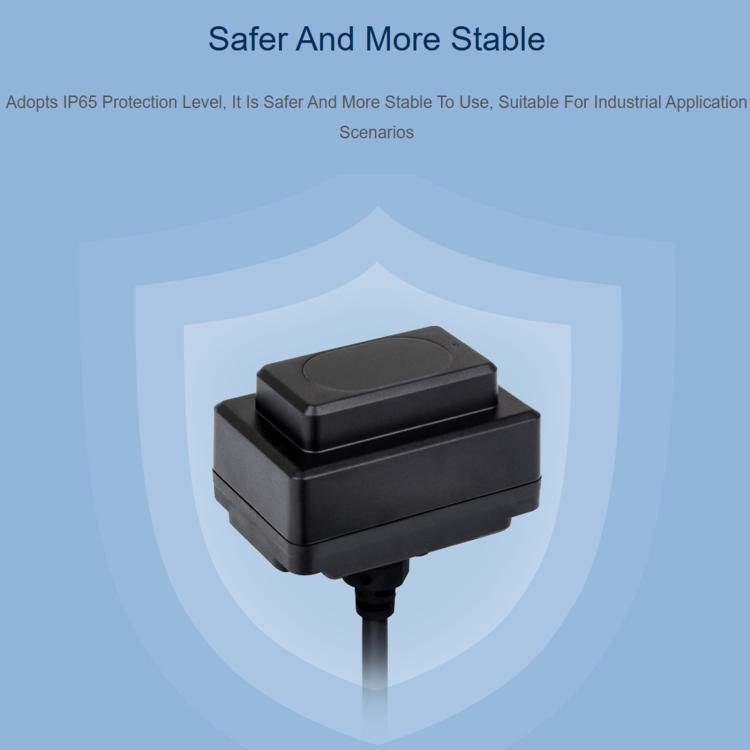

7. Enclosure Rating: IP65
Optical parameters:
1. Light source: VCSEL
2. Center wavelength: 850nm
3. Eye safety: Class 1 (IEC60825)
4. Field of View (FOV): 2 degrees
Electrical parameters：
1. Supply voltage: DC 7V–30V
2. Average current: less than or equal to 65mA at 12V
3. Power consumption: less than 0.8W at 12V
4. Peak current: 100mA at 12V
5. Communication interface: RS485
Other:
1. Dimensions: 50mm x 34mm x 41mm (L x W x H)
2. Housing material: ABS/PC/PMMA
3. Storage temperature: minus 30 to 75 degrees Celsius
4. Weight: 52g (including cable)
5. Cable length: 70cm
| Package Weight |
|
| Weight | 0.194 lbs |
|---|---|
| Dimensions | 12 × 8 × 5 in |
