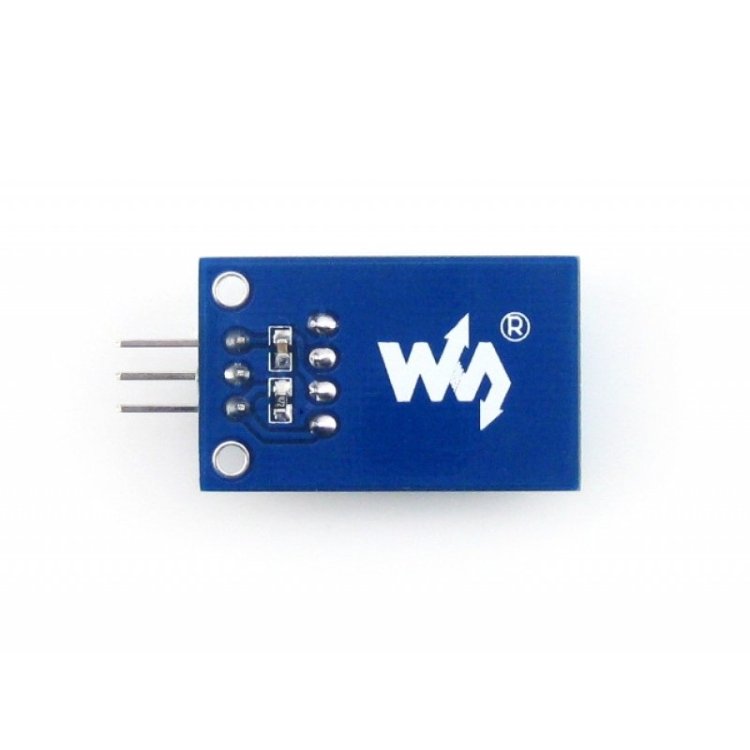

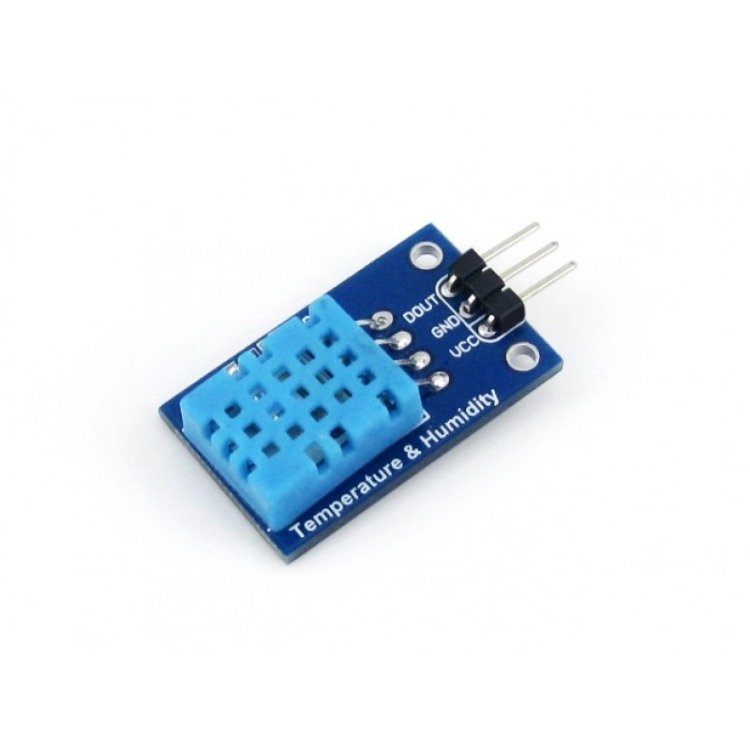

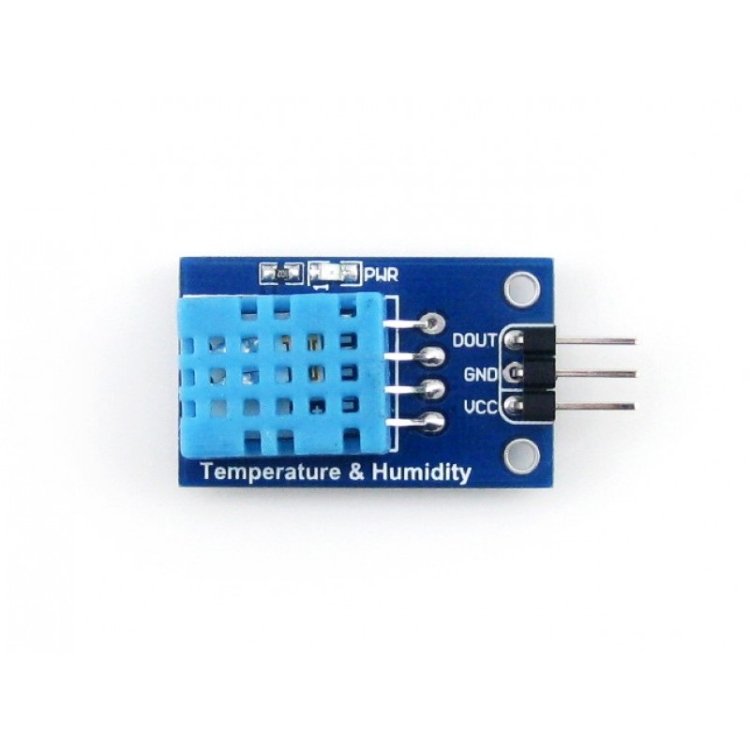

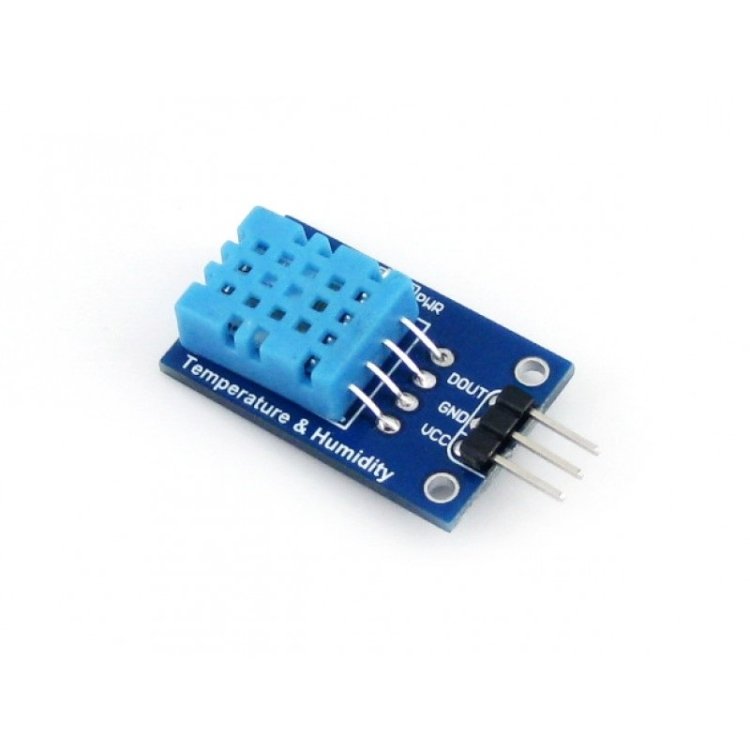

Temperature-Humidity Sensor, DHT11 Onboard
Overview
This is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.
Specifications
1. Temperature
– Resolution : 1 degree C
– Accuracy : +/-2 degree C
– Measuring range : 0 degree C ~ 50 degree C
2. Humidity
– Resolution : 1%RH
– Accuracy : +/-5%RH (0~50 degree C)
– Measuring range : 20%RH ~ 90%RH (25 degree C)
3. Operating voltage : 3.3V ~ 5.5 V
4. Recommended storage condition
– Temperature : 10 degree C ~40 degree C
– Humidity : 60%RH or below
Applications
1. Weather station
2. Humidity controller
3. Test & detection device
How to Use

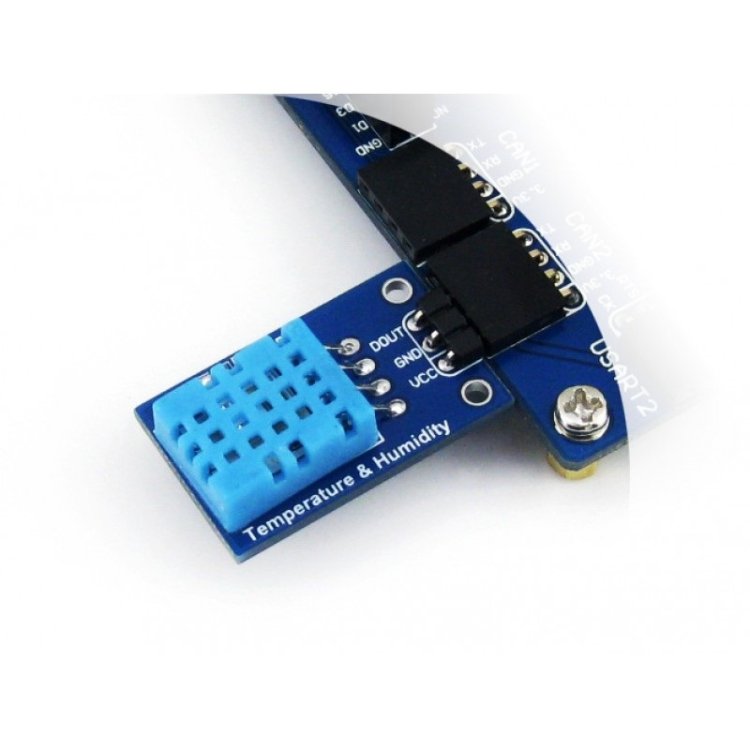

In the case of working with a MCU:
1. VCC: 3.3V ~ 5.5V
2. GND: GND
3. DOUT: MCU.IO
Package Contents
1. DHT11 Temperature-Humidity Sensor x1
2. 3-pin custom connector jumper wire x1
Specification:
| Package Weight |
| One Package Weight |
0.01kgs / 0.03lb |
| One Package Size |
4cm * 3cm * 1cm / 1.57inch * 1.18inch * 0.39inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch |
| Loading Container |
20GP: 284 cartons * 7800 pcs = 2215200 pcs
40HQ: 661 cartons * 7800 pcs = 5155800 pcs |
|
