1. It supports 10-point touch. The actual number of touch points depends on the software system
2. The tempered glass panel has a hardness of 6H
3. The screen is fully adhered, providing excellent display and dust-proof performance

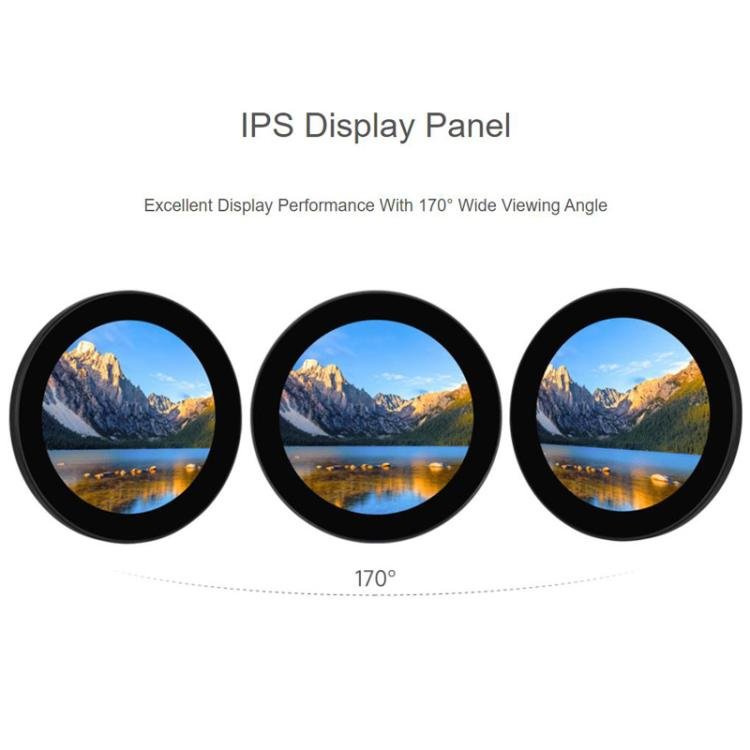

4. The IPS display panel offers excellent display performance with a viewing angle of up to 170°
5. It is widely applicable and can be used in smart home, vehicle-mounted devices, consumer electronics, industrial equipment, and other fields
Parameters
1. Contrast ratio: 1200:1
2. Display chip: JD9365
3. Touch chip: GT928

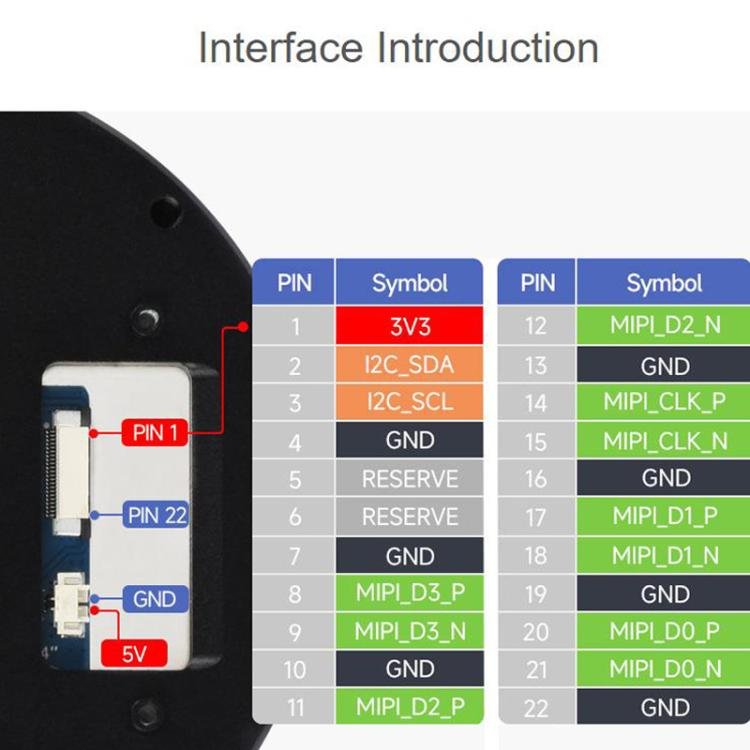

4. Communication interface: 2-lane MIPI DSI
5. Operating temperature: 0℃ – 60℃
6. Resolution: 3.4 inches: 800 x 800 pixels (H x V); 4 inches: 720 x 720 pixels (H x V)
7. Color gamut: 3.4 inches: 70% NTSC; 4 inches: 60% NTSC
8. Brightness: 3.4 inches: 300cd/square meter; 4 inches: 550cd/square meter
9. Dimensions: 3.4 inches: 11.5 x 11.5 cm; 4 inches: 12.6 x 12.6 cm
10. Display size: 3.4 inches: 8.76 x 8.76 cm; 4 inches: 10.152 x 10.152 cm
Packaging list:
– Display screen x 1
– Screw pack x 1
– MX1.25 2PIN to MX1.25 4PIN 150mm x 1
– MIPI-DSI-Cable-12cm x 1
– MX1.25 2PIN to 2.54 3PIN connecting cable x 1
– FFC 22PIN crossover cable (opposite direction) x 2
Specification:
| Package Weight |
| One Package Weight |
0.16kgs / 0.36lb |
| One Package Size |
15cm * 15cm * 4cm / 5.91inch * 5.91inch * 1.57inch |
| Carton Weight |
9.00kgs / 19.84lb |
| Carton Size |
50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 520 cartons * 48 pcs = 24960 pcs
40HQ: 1209 cartons * 48 pcs = 58032 pcs |
|
