Specifications

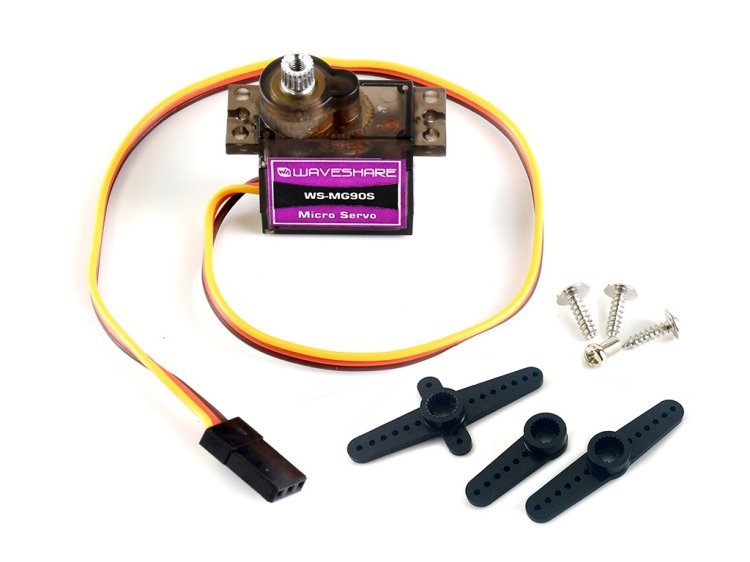

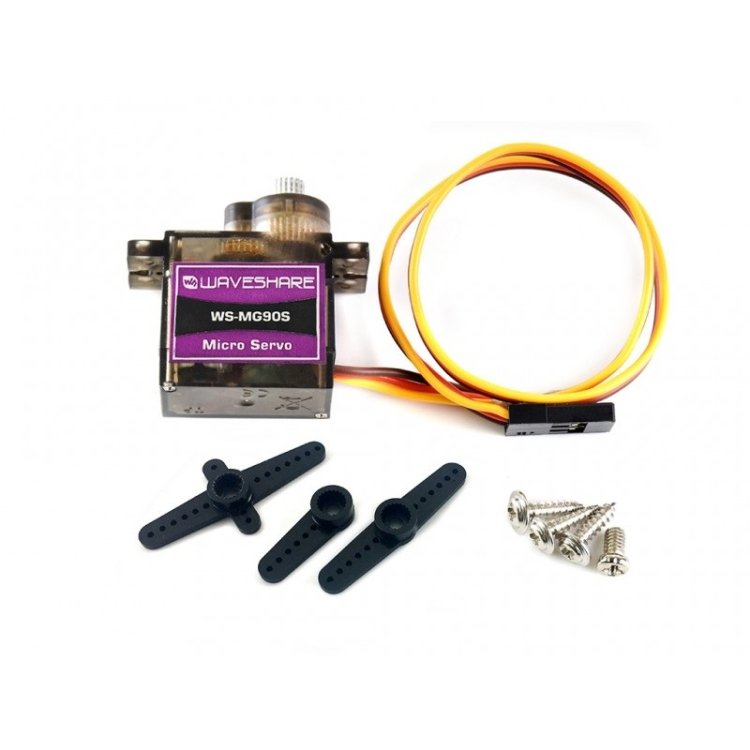

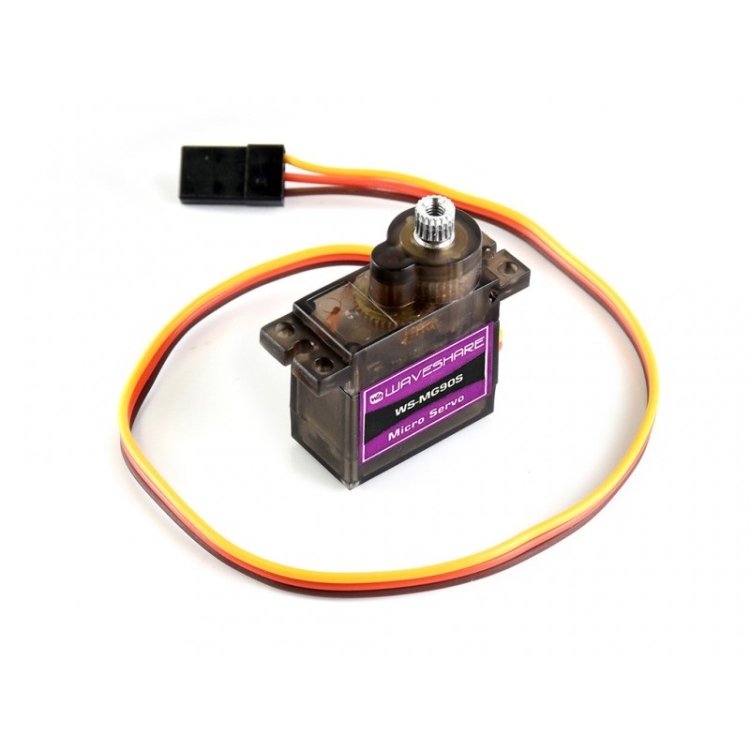

1. Product: MG90S Servo
2. Torque: 2.0kg/cm(4.8V), 2.8kg/cm(6V)
3. Speed: 0.11s/60°(4.8V), 0.09s/60°(6V)
4. Rotate angle: 180°
5. Operating voltage: 4.8 ~ 6V
6. Gear: metal
7. Dead band: 5us
8. Weight: 12.2g
9. Dimension: 22.8mm × 12.2mm × 28.5mm
Specification:
| Package Weight |
| One Package Weight |
0.04kgs / 0.09lb |
| One Package Size |
7cm * 4cm * 6cm / 2.76inch * 1.57inch * 2.36inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
56cm * 40cm * 36cm / 22.05inch * 15.75inch * 14.17inch |
| Loading Container |
20GP: 330 cartons * 480 pcs = 158400 pcs
40HQ: 767 cartons * 480 pcs = 368160 pcs |
|
