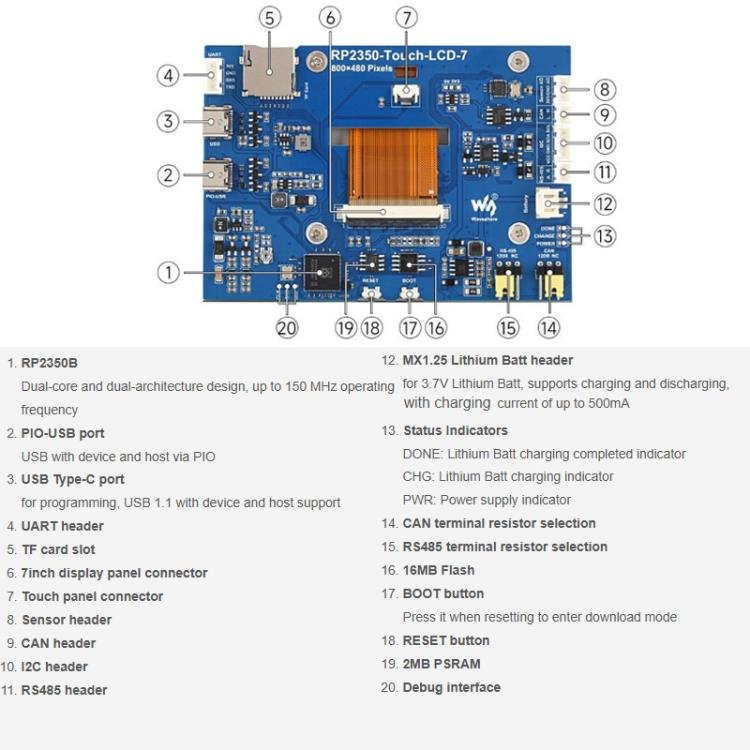

1. RP2350B microcontroller chip designed for Raspberry Pi
2. Unique dual-core, dual-architecture design featuring dual-core ARM Cortex-M33 processors and dual-core Hazard3 RISC-V processors, each clocked at up to 150MHz, enabling flexible switching between architectures
3. Integrated 520KB SRAM, 16MB on-chip Flash, and 2MB PSRAM
4. Features a Type-C interface for reversible plugging

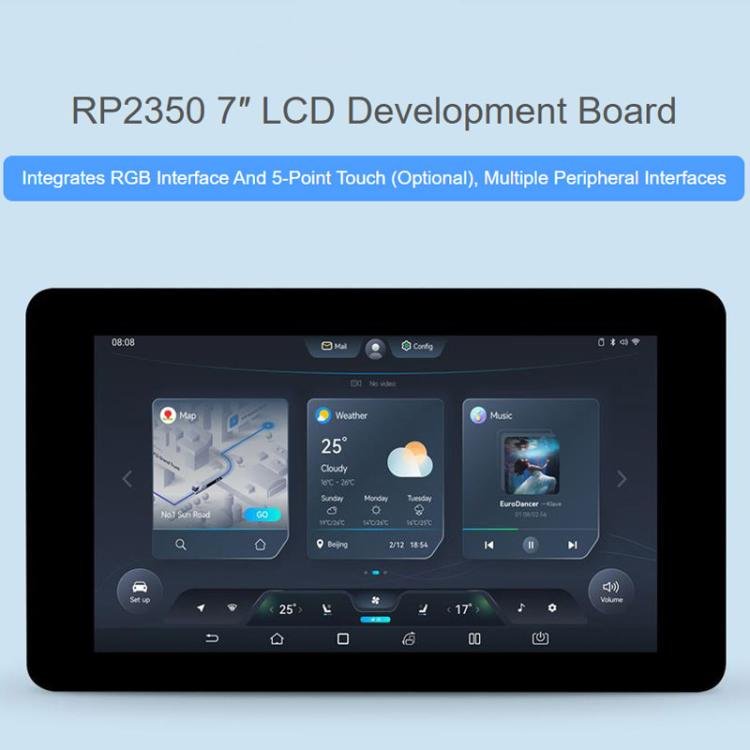

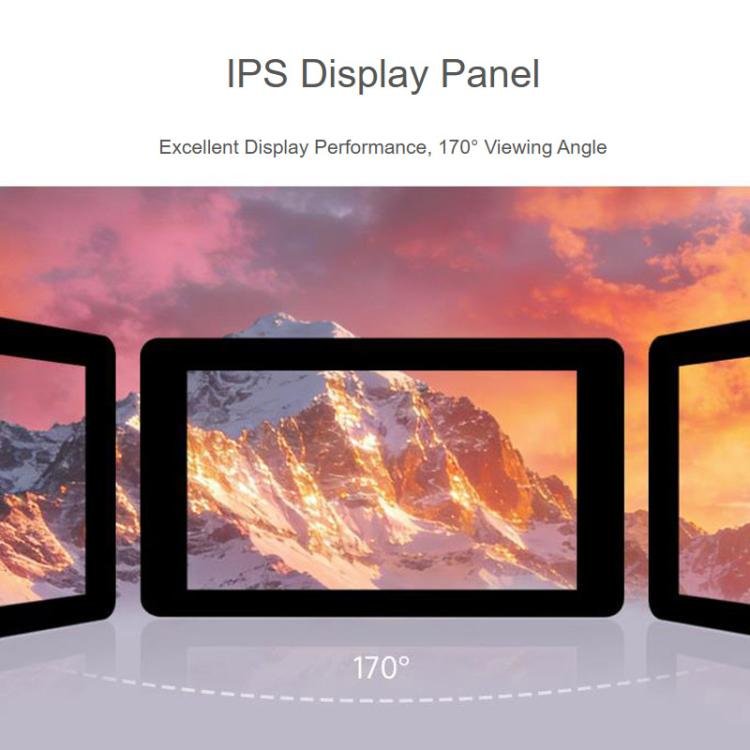

5. Onboard 7-inch capacitive LCD display with 800 × 480 resolution and 65K colors

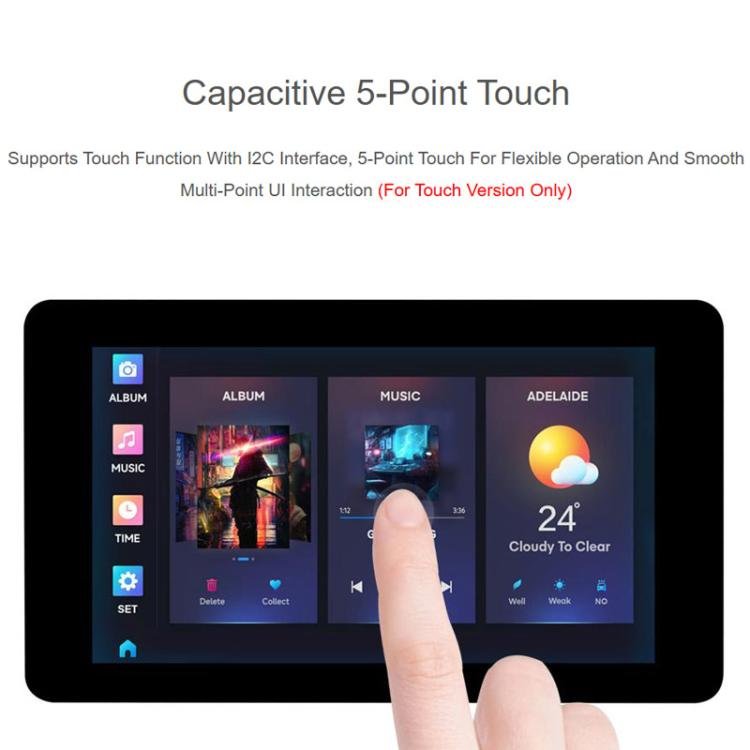

6. Supports I2C interface for capacitive touch control, 5-point touch, with interrupt support (touch version only)

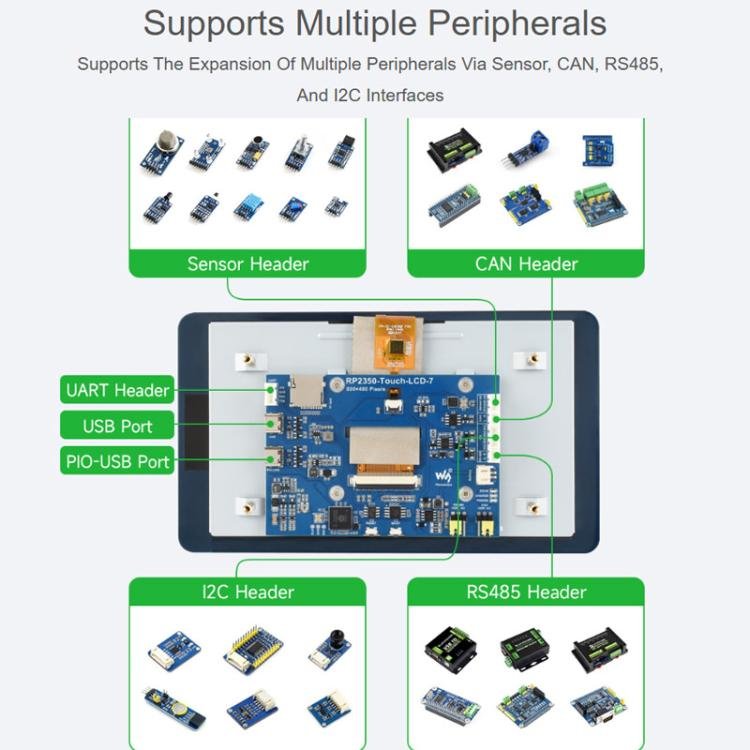

7. Onboard interfaces include Sensor, CAN, RS485, I2C, and UART
8. USB 1.1 host and device support
9. Supports low-power sleep and hibernation modes
10. USB mass storage mode for drag-and-drop program downloads
11. Precise on-chip clock and timers
12. Built-in temperature sensor for real-time chip temperature monitoring
13. 12 programmable I/O (PIO) state machines for custom peripheral support
Package contents:
– Display x 1
– HY2.0 2-pin to male DuPont connector 2-pin about 10cm x 2
– HY2.0 3-pin to male DuPont connector 3-pin about 10cm x 1
– HY2.0 4-pin to male DuPont connector 4-pin about 10cm x 2
– Screw set x 1
Specification:
| Package Weight |
| One Package Weight |
0.21kgs / 0.47lb |
| One Package Size |
20cm * 14cm * 4cm / 7.87inch * 5.51inch * 1.57inch |
| Carton Weight |
9.00kgs / 19.84lb |
| Carton Size |
42cm * 38cm * 30cm / 16.54inch * 14.96inch * 11.81inch |
| Loading Container |
20GP: 556 cartons * 36 pcs = 20016 pcs
40HQ: 1292 cartons * 36 pcs = 46512 pcs |
|
